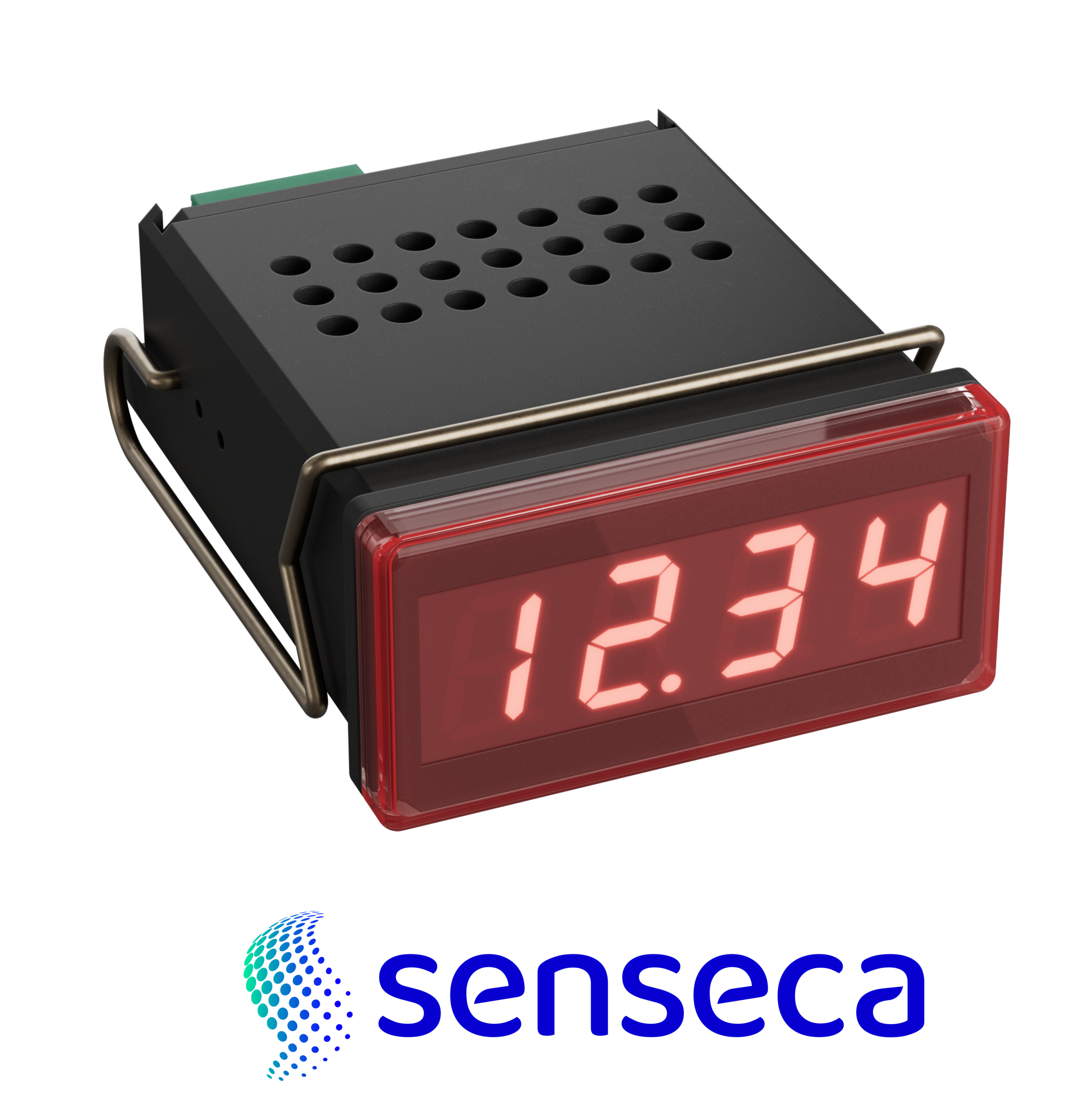

GIA 20 EB Universal Display and Regulating Device

• Measuring input: standard signal, Pt100, Pt1000, thermocouples or frequency (or input signal)
• measuring resp. display range (standard signal): -1999 … 9999 digit, scale freely adjustable
• Switching outputs: 2
• Switch function: display, 2-point, 3-point, 2-point with alarm or min./max. Alarm
• Interface: EASYBUS, protected against polarity reversal
• Miscellaneous: 3 control keys for configuration, min./max. value memory, etc.

GIR 2002 Universal displaying and regulating device with on/off-control mode

• Universal Inputs: 0-20mA, 4-20mA, 0-50mV, 0-1V, 0-2V and 0-10V, RTD (for Pt100 and Pt1000),Thermocouple probes (type K, J, N, T and S), Frequency (TTL and switching contact).
• 2 relay switching outputs
• 1 analog output (0(4)-20 mA or 0-10 V) (optional)
• 5 programmable switching modes
• electrical isolated power supply for a transmitter (24 V / 22 mA)
• serial interface, bus operation
• Configurable via PC using GIR 2002 configuration software (EBW 3 required)
Applications:
• process regulating
• temperature controller
• pressure monitoring
• rotation speed display
• flow counter, etc.

GIR 2000 Pt OF 2-point temperature controller without temperature probe

• Input: Pt 100, 3-wire
• measuring range: -50.0 … +200.0 ° C
• Resolution: 0.1 ° C
• Accuracy: <0.3% FS ± 1 digit
• Type of control: 2-point
• switching Output: 1 potential-free change-over contact, 10A (resistive load) / 250VAC
• Power Supply: 230 VAC, 50 / 60Hz
• Dimensions: 48 x 96 x 100 (HxWxD)
• Temperature Probe: not in scope of supply
• Note: Replacement product for GIR 200 Pt100 / OF

PXU11D20 PID Controller

• Accepts Universal Inputs: Thermocouple, RTD, 0-10 VDC,  4 – 20 mA (0 – 50 mA)
• PID control
• Dual Relay output
• Remote setpoint
• One programmable user input
• On-demand auto-tuning of PID settings
• RS-485 communications
• IP65-rated front panel
• 1/16 DIN
• W48 x H96 mm
• 100 to 240 VAC -20/+8 %, 50/60 Hz, 5 VA
• Programmed using Crimson® 2.1

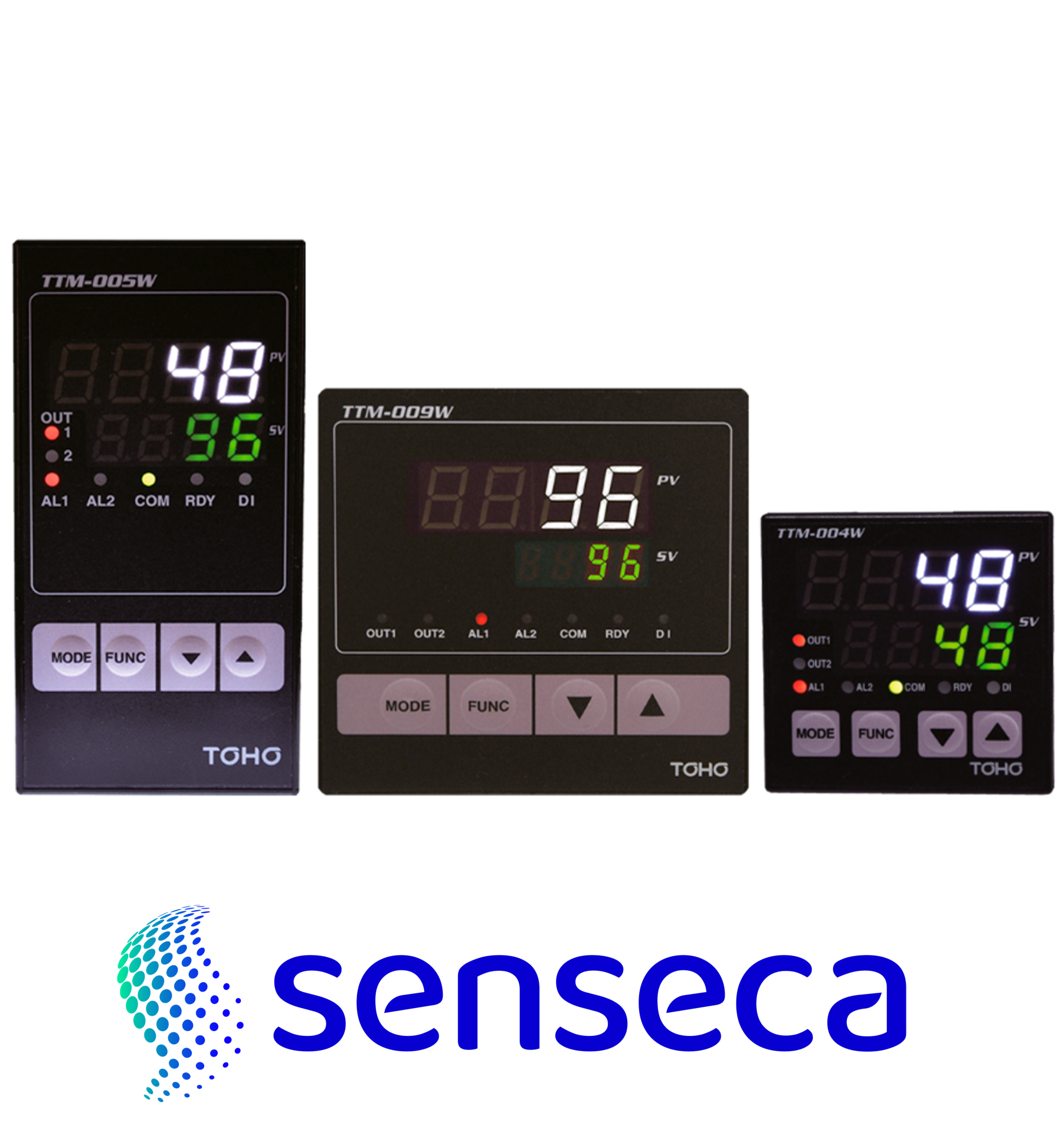

TTM Temperature Controller

• 2-, 3-point- or continuous controller
• Measuring input for Pt100, thermocouple or voltage / current
• Measuring range programmable
• Control performance PID with auto-tuning
• Process output relay, electronic output 0/12 V or
• continuous 4..20 mA
• Alarm output relay, alarm function configurable
• TTM-004W – DIN 48×48
• TTM-005W – DIN 48×96
• TTM-009W – DIN 96×96
