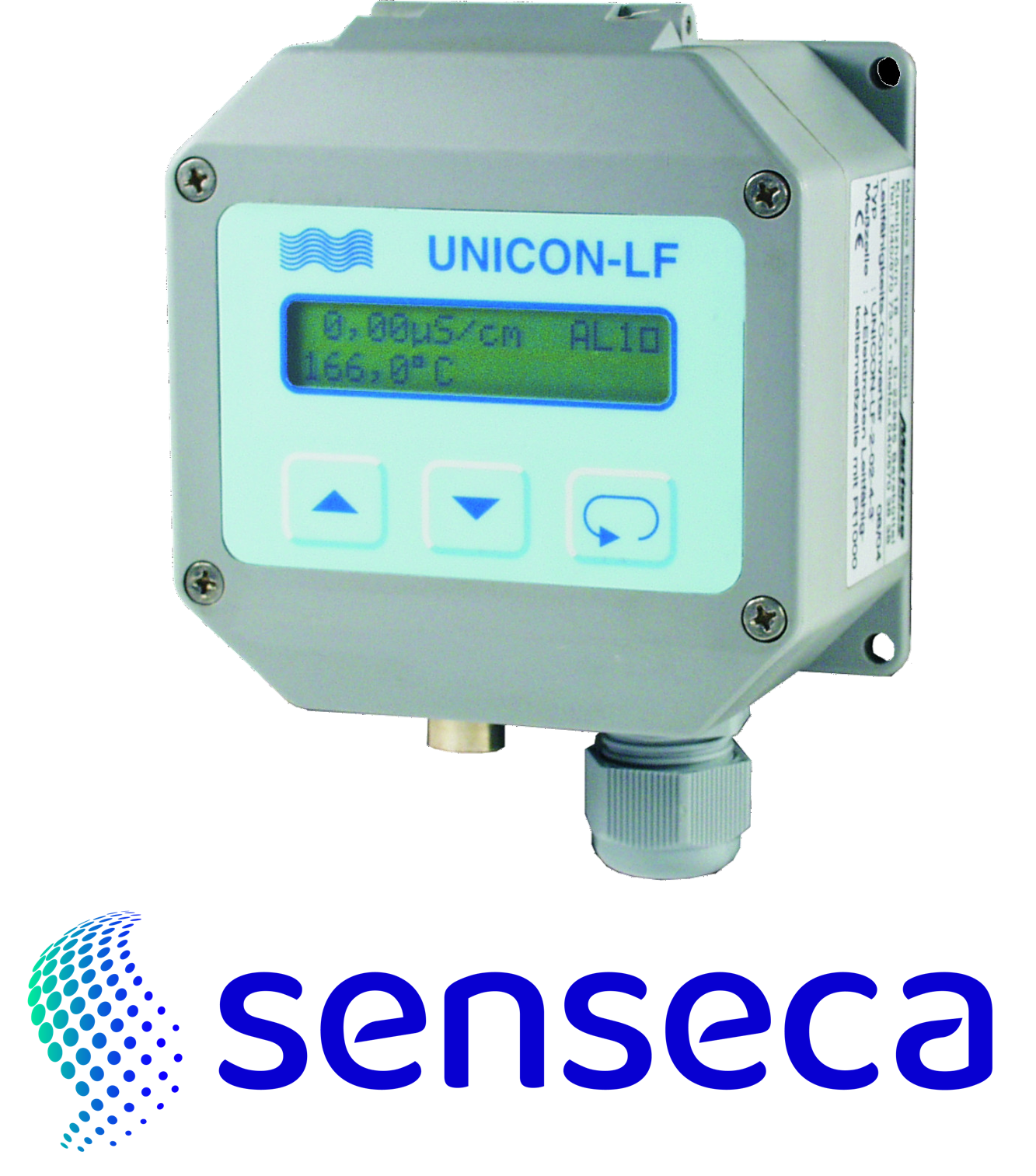

UNICON-LF Conductivity converter

• For head or field installation
• Feed via current loop
• Temperature compensation
• Conductivity output: Current 4..20 mA
• Temperature output: Current 4..20 mA
• Loop voltage : UB 14..30 V DC, 2-wire connection
• Operating temperature : 0..50 °C
• CE- conformity : EN 61326-1:2013
• Unit : programmable μS/cm; mS/cm;
• kΩ/cm; MΩ/cm
• Decimals : 0..3 digit (unit depending)
• Indicating range : 500..9999 Digit (unit and decimals depending)
• Cell constant : 0.080..9.999
• Accuracy : ±0.5 % of the measuring value, ±2 Digit

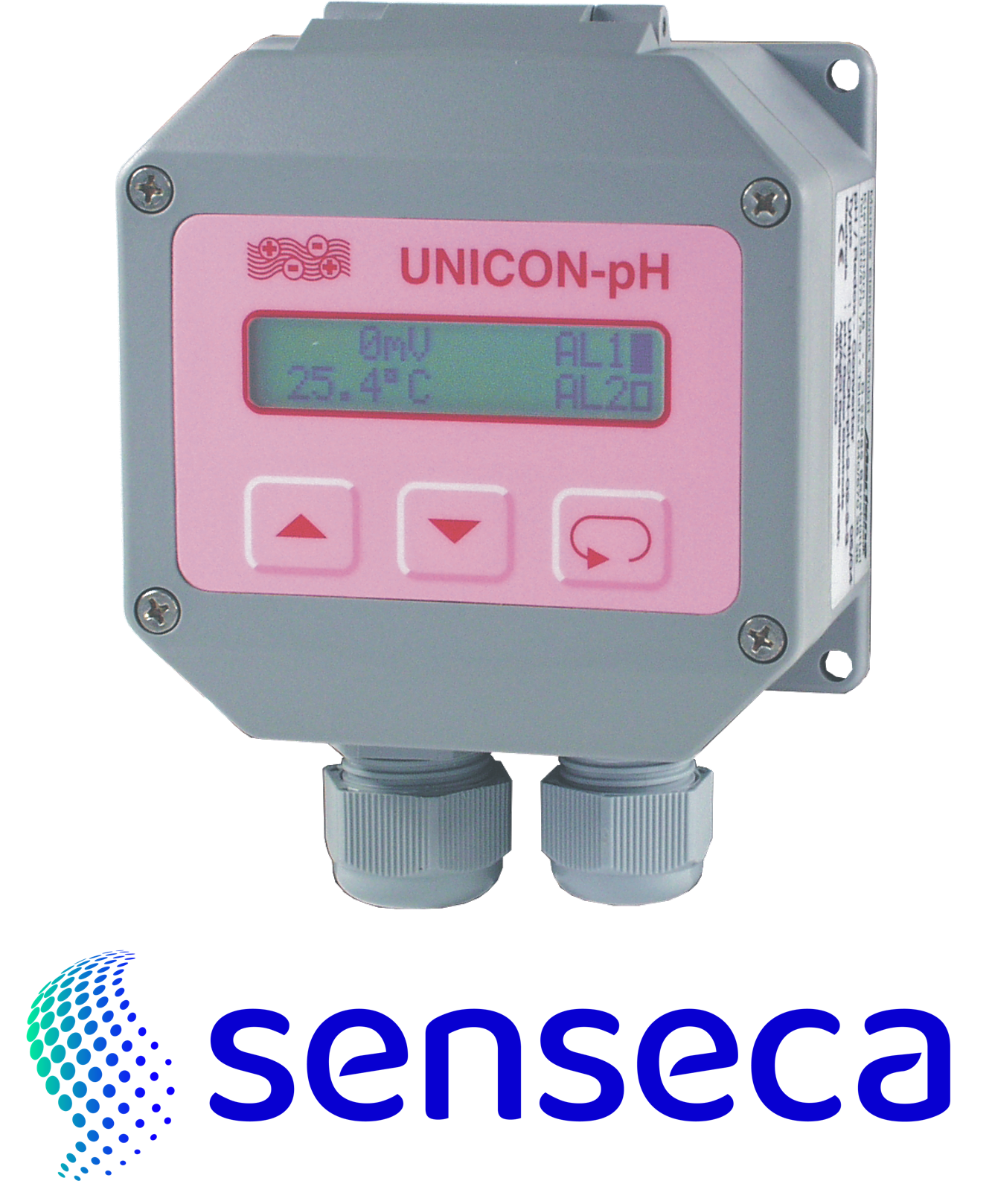

UNICON-pH pH and ORP converter

The pH and ORP converter UNICON-pH is suitable for pH and ORP measurement in food technology, chemistry within pharmaceutical and sewage-water technology. The converter works with all common pH- and ORP electrodes.

● Field or head mounting
● Measuring range programmable -1..+15 pH / ±1500 mV
● Temperature compensation via P100/Pt1000 sensor
● Analog output 4..20 mA for pH/ORP and temperature
● 2 alarm outputs, transistor

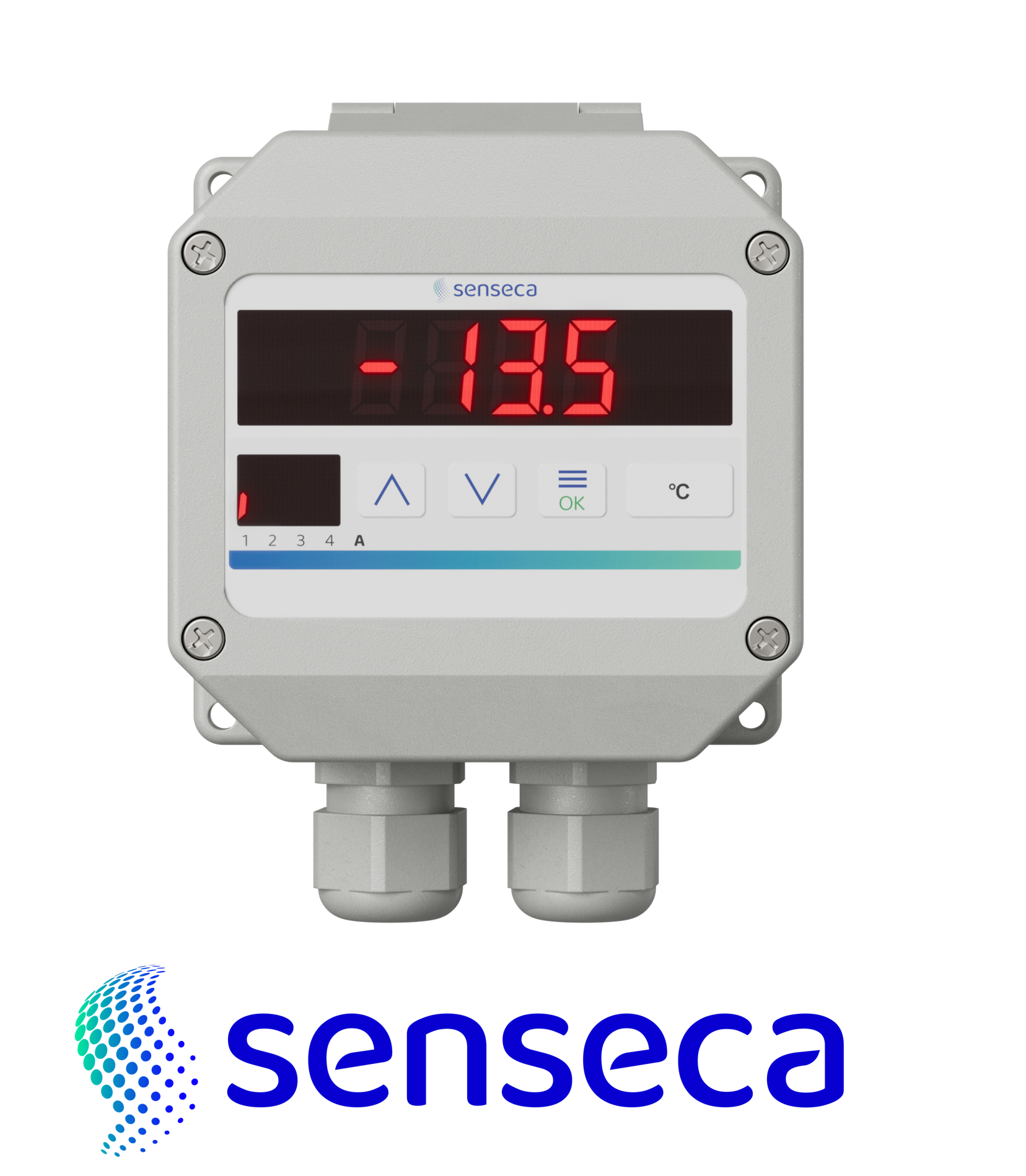

T1010 Temperature meter

The Temperature-Meter T1010 is suitable for measurement of temperatures in connection with RTD sensors Pt100, Pt1000. Devices for other temperature sensors are available on request. The measuring input is isolated. The measuring range can be limited in the configuration level. This is identical with the range of the analog output.

• Measuring input Pt100 -100.0..+600.0 °CPt1000 -50.0..+200.0 °C
• LED-Display 14.2 mm red, indicating range ±9999(0) Digit
• Max. 2 alarm outputs, relay SPDT
• Analog output 0/4..20 mA, 0/2..10 V
• Field case with snap lid, 2 x M16x1.5

LF1010 Conductivity-Meter

• One device covers 0..2.000(0) μS/cm up to 0..2000 / 200(0) mS/cm
• The input supports 2- or 4-electrode conductivity cells, with Pt100 or Pt1000 temperature compensation
• 4-electrode cells support high accuracy and lower sensitivity to contamination
• Red LED display with 14.2 mm digits supports quick reading on site
• IP65 field case supports installation in demanding environments
• Can be configured without alarm output or with two relay outputs
• Alarm function can be programmed as minimum or maximum function
• Versions are available for 230 V AC, 115 V AC, 24 V AC or 24 V DC supply

S1010 Standard Signal Meter

• Displays 0/4 … 20 mA or 0 … 10 V DC values on a 14.2 mm red LED
• Indicating range and decimal point are programmable to ±9999(0) digit
• Integrated 24 V supply connects 2- and 3-wire transmitters
• Up to 2 relay outputs with hysteresis and delay times from 1 s to 9 h
• IP65 field case with snap lid and 2 x M16x1.5 cable glands
• The optional analog output provides 0/4 … 20 mA or 0/2 … 10 V DC
• Start value, end value and decimal point position are programmable
• A fixed zero setting and indicating correction are also available in the configuration menu
• Supply voltage options include 230 V AC, 115 V AC, 24 V AC and 24 V DC
