SMA / SMF High Pressure Switch
- Snap action micro switch
- Ideal for many hydraulic and pneumatic applications
- Utilizes a proven piston/diaphragm design
- Factory set or field adjustable
- Diaphragm/piston design for longevity
- High proof pressure
- UL and CE approved
- Housing Material: Zinc Plated Steel, (Optional Stainless Steel)
- Models:
- SMA-3 0.7 – 2.4 bar
- SMA-4 2.0 – 8.0 bar
- SMA-5 5.2 – 21 bar
- SMA-6 21 – 83 bar
- SMA-7 69 – 207 bar
- SMA-8 138 – 345 bar
SPA / SPF Snap Action Low Pressure Switch
- Miniature pressure switch with a high-quality snap-action microswitch
- Suitable for pneumatic, water, and any low-pressure hydraulic applications
- Factory set or field adjustable with an Allen screw
- Optional IP67 rating for any of our flying lead options (CA and CS)
- Lead-free brass is available for special application requirements
- Compact size
- UL & CE approved
- Housing Material: Standard: Brass, Optional: Stainless Steel, Lead-Free Brass
- Models:
- SPA-1 0.2 – 0.5 bar
- SPA-2 0.3 – 2.1 bar
- SPA-3 1.7 – 10 bar
TC Series High Pressure Transducer
- Compact pressure transducer
- Suitable for mobile applications and great choice for tight spaces
- Temperature Compensation
- Stainless Steel Construction
- Accuracy: 0.5% FS
- Pressure Range: 1500 PSI to 10,000 PSI (700 BAR)
- Operating Temperatures: -4°F to 176°F (-20°C to 80°C)
- Process Connection: Standard: SS304, Optional: SS316
- Current Output: 4 – 20mA
TG Industrial Vacuum Transducer
- General-purpose low-cost industrial transducer
- Suitable for a wide range of applications
- Available in either 0.5% or 0.25% accuracy.
- Utilizes diffused silicone, ceramic and strain gauge technologies
- Pressure Range: Vacuum to 10,000 PSI (700 BAR)
- Temperature Compensation
- Voltage 0-5V, 0.5-4.5V, 0-10V and Current output 4-20mA models available
- Operating Temperatures: -4°F to 176°F (-20°C to 80°C)
- Process Connection: Standard: SS304, Optional: SS316

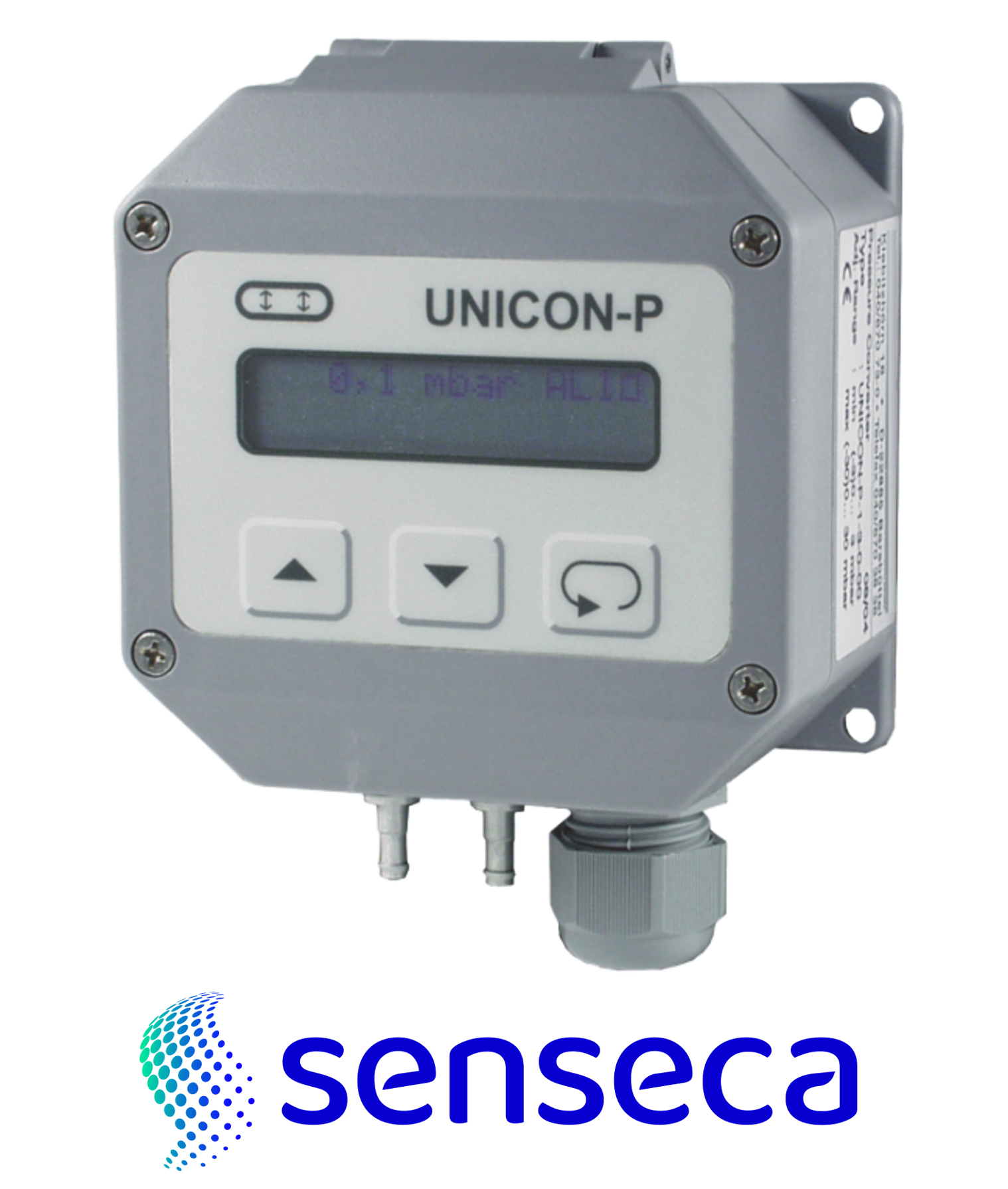

UNICON-P Pressure Converter
- Programming via front side keypad
- For dry and non aggressive gases
- Measuring range programmable
- Supply voltage : 7.5..30 VDC, 2-wire 4..20 mA, 16..30 VDC, 3-wire 0..10 VDC
- Operating temp. : 0..50 °C
- Process connection: 2 pressure tubes for 4 mm
- hose (standard) or 4 and 6 mm Schott glands available
- Measuring principle : Piezoelectric
- Output: Current : 4..20 mA (2-wire connection), Voltage : 0..10 V
- Alarm output: Transistor : 7.5..30 VDC
- Conversion rate : parameter input filter low = 8 / s; med and high= 2 / s
- Connection : screw terminal with pressure plate, 2,5 mm² flexible, 4 mm² wire
- Protection class : IP65, terminals IP20 acc. to BGV A3
PH1 Pressure Switch
- Mechanical switch
- Adjustable switch point
- Adjustable hysteresis
- Change over contact
- Plug DIN 43650-A
- Lateral cable exit
- Switching range: -0.85..320 bar gauge
- Media: Water, oils, gases
- Ingress protection: IP 65
- Elect. connection: Plug DIN 43650-A/ ISO 4400
- with screw clamp in the plug
- Installation location as desired

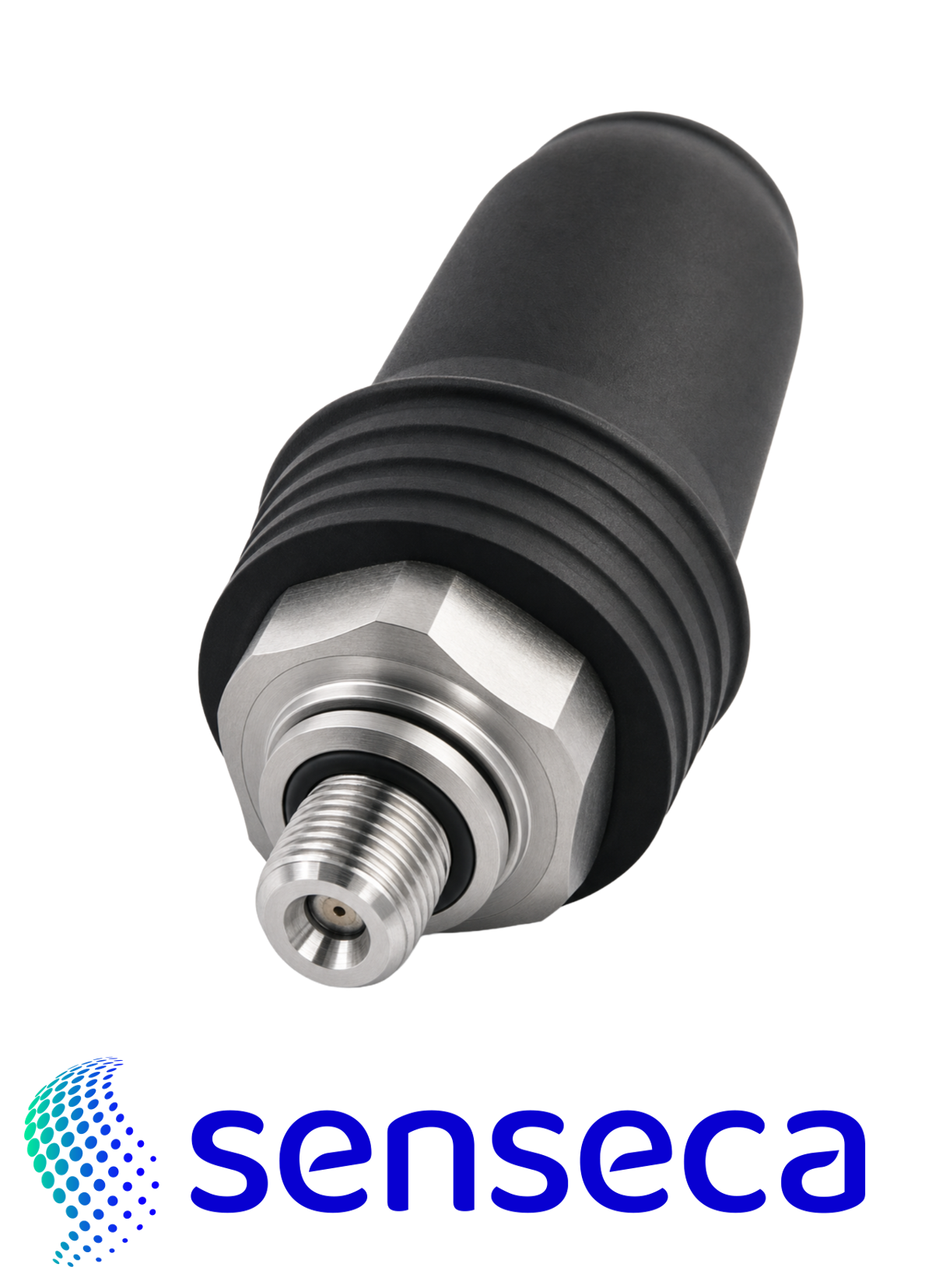

PM1 Pressure Switch
- Mechanical switch
- Adjustable switch point
- Change over contact
- Flat plug 6.3×0.8 with rubber protection cap or
- Circular plug M12×1
- Switching range: -0.85..320 bar gauge
- Media: Water, oils, gases
- Ingress protection: Flat plug: IP 00, with rubber protection cap: IP 54, Circular plug M12×1: IP67
- Electrical connection: 3 x Flat plug 6,3×0,8, Optional: Circular plug M12x1, Cable output, Deutsch plug DT04-2P
OMNI-P1 Pressure Transmitter / Switch
- Analog output, two switching outputs
- Clear, easily legible, illuminated LCD display
- Modifiable units in the display
- Designed for industrial use
- Process connection: male thread G 1/4 A, G 1/2 A
- Measurement range: 0..100 bar
- Measurement accuracy: ±1 % of final value
- Working temperature: -20..+70 °C
- Electrical connection: for round plug connector M12x1, 5-pole
- Ingress protection: IP 67
- Materials medium-contact: stainless steel 1.4571, ceramic Al2O3, FKM

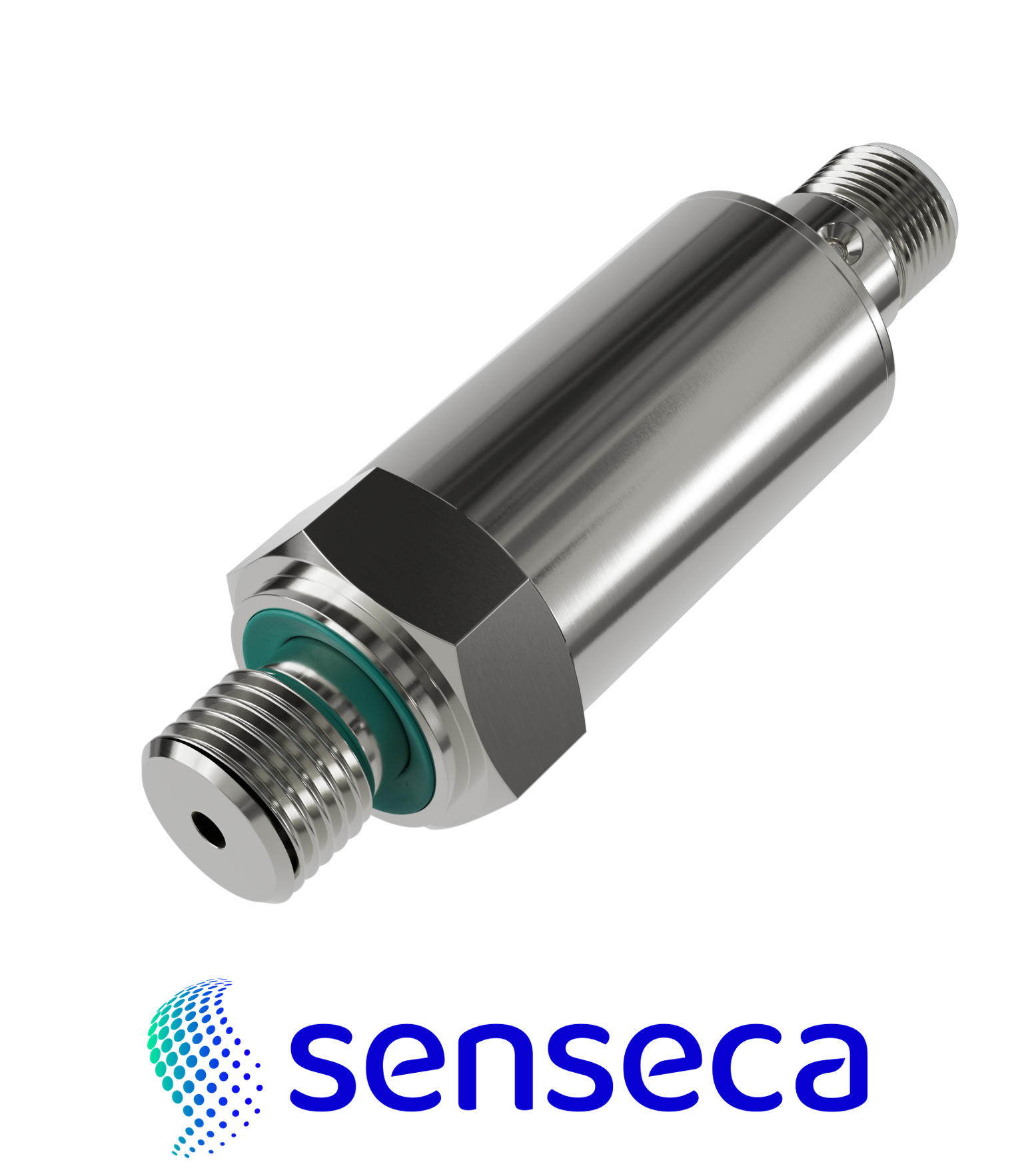

EPS2 Pressure Transmitter
- Measuring cell made of stainless steel, hermetically welded
- Analog signal 4..20 mA (two-wire)
- Very rapid reaction time thanks to analog signal path with mixed signal ASIC
- Ranges from 0.6..2000 bar relative pressure
- Robust full metal housing
- Class: 0.5 % standard
- Working temperature -40 °C to +100 °C
- Poly-Si on SiO2 (thin film resistors)
- M12x1 plug system (or others on request)
