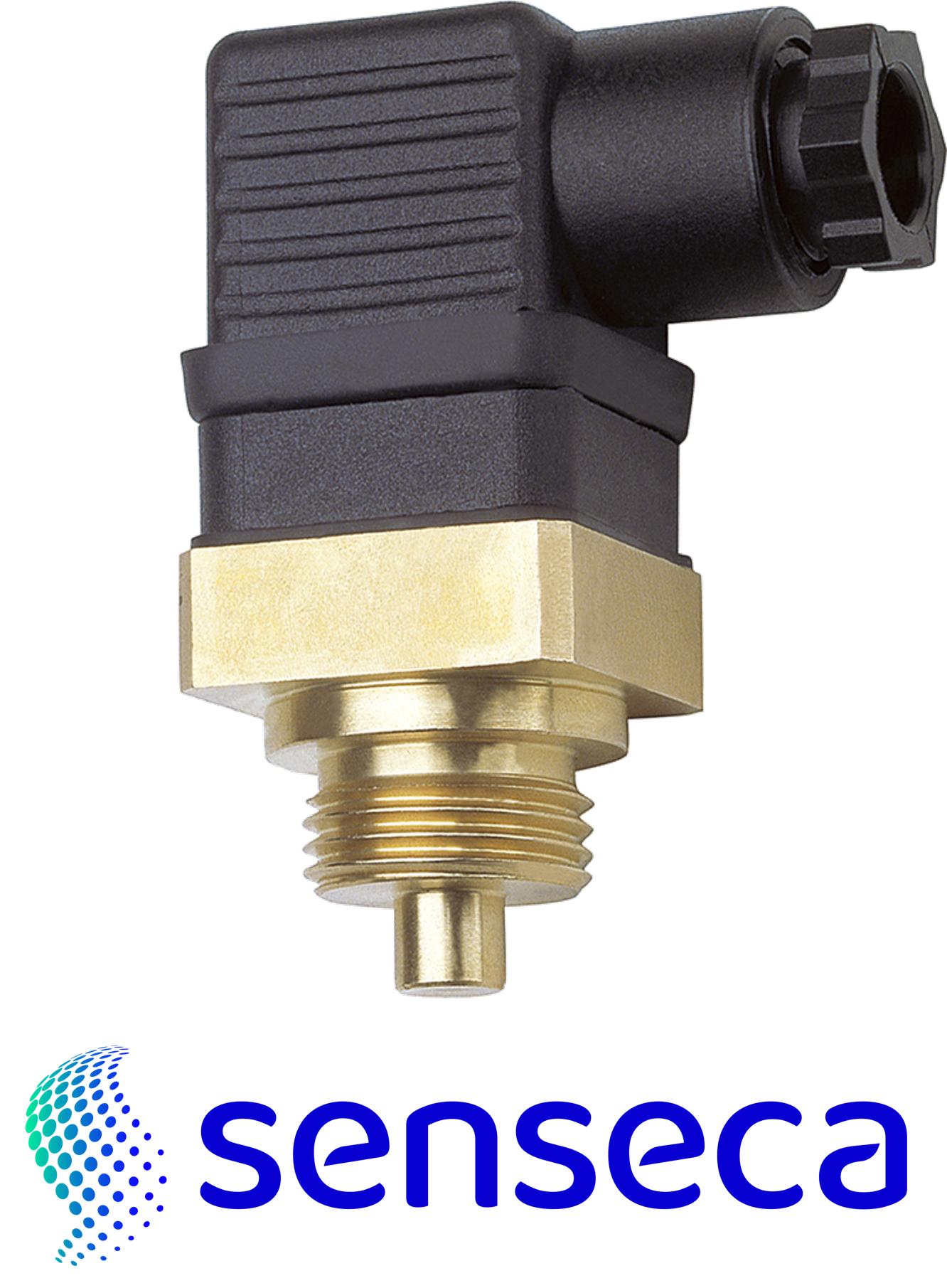

TF1 Temperature Controller

• Bimetal thermostatic switch
• Installation location as desired
• Compact construction
• Normally opened or normally closed contact
• Process connection: male thread G 1/2 A – optionally G 3/4 A
• Switching value: +40..+120 °C in 10 °C steps.
• Pressure: PN 100
• Media: water, oils, gases
• Ingress protection: IP 65
• Electrical connection: plug DIN 43650-A / ISO 4400
• Brass or Stainless Steel materials

GTF 103-EX Industrial temperature probes (ATEX 100)

DIN-B-head temperature probe for use in potentially explosive gaseous or dust mixtures

• Potential-free temperature probe made of stainless steel
• Assembled according to customer preferences
• Sensor element : Pt100, PT1000 (sheathed element), 4-wire; type K (NiCr-Ni) or type N (NiCrSi-NiSi) sheathed thermocouple
• Measuring range

     Pt100 / Pt1000 : -200..+100 °C (600 °C with neck tube)
     Type K / type N : -200..+100 °C (900 °C with neck tube)

• Accuracy: Pt100 / Pt1000 : DIN class B, Type K / type N : class 1
• Type of protection : “i” intrinsic safe, “e” increased safety
• Ambient temperature : -20..+60 °C (protection type “e”), -20..+80 °C (protection type “i”)
• Process connection: cylindrical or metric thread or without thread
• Electrical connection: cable entry via pressure screw
• Mounting: by process connection or by separate
• clamping ring screw connection
• Suitable for potentially explosive atmospheres: zone 0, zone 0/1, zone 1, zone 2, zone 20 zone 20/21 zone 21, zone 22

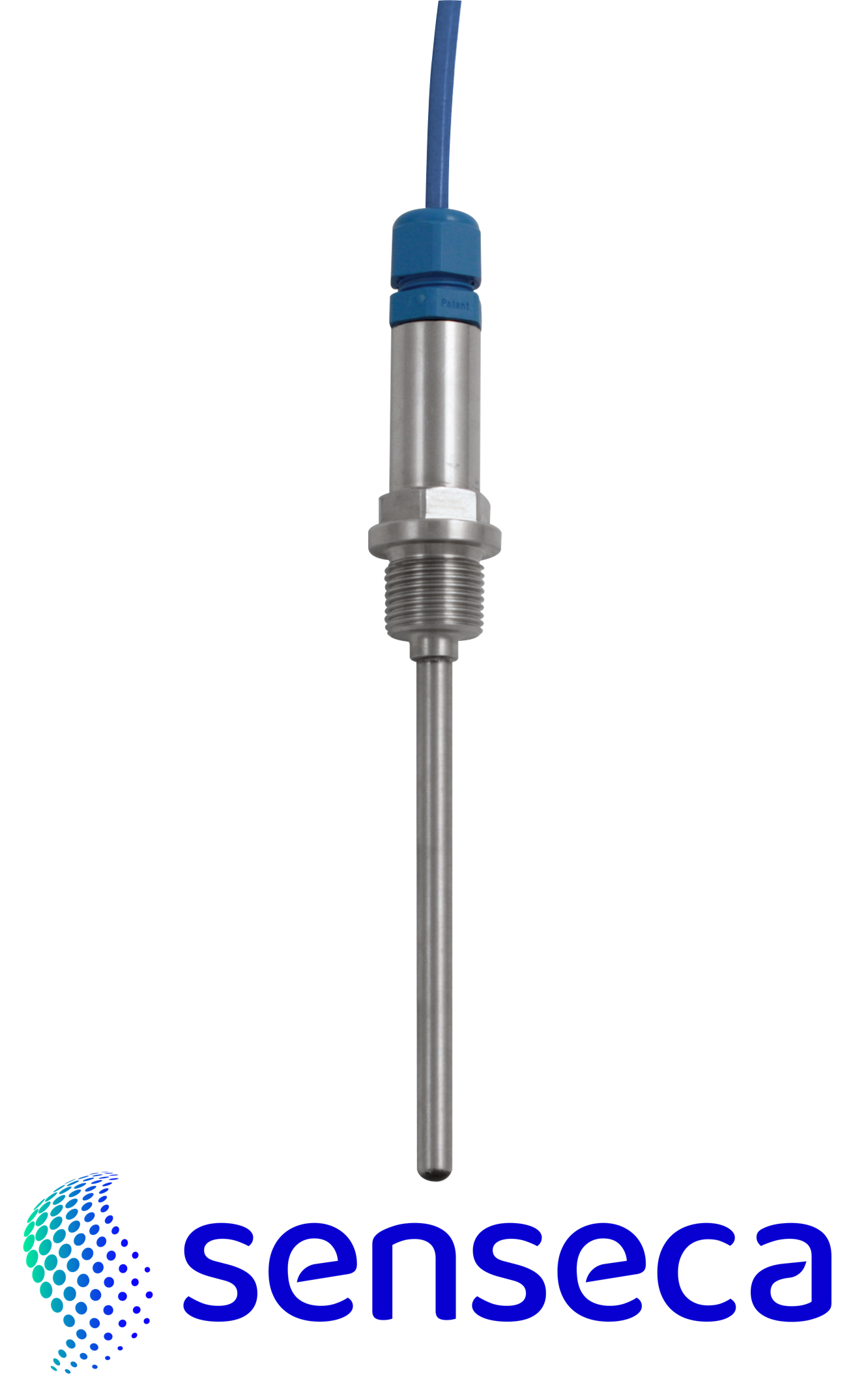

GTF 102-Ex Ex Temperature Probe

• Screw-in temperature probe for use in potentially explosive gaseous or dust mixtures
• Potential-free temperature probe made of stainless steel
• Assembled according to customer preferences
• Sensor element : Pt100, PT1000 (sheathed element), 4-wire; type K (NiCr-Ni) or type N (NiCrSi-NiSi) sheathed thermocouple
• Measuring range
• Pt100 / Pt1000 : -200..+100 °C (600 °C with neck tube)
• Type K / type N : -200..+100 °C (900 °C with neck tube)
• Accuracy: Pt100 / Pt1000 : DIN class B, Type K / type N : class 1
• Type of protection : “i” intrinsic safe, “e” increased safety
• Ambient temperature : -20..+60 °C (protection type “e”), -20..+80 °C (protection type “i”)
• Process connection: cylindrical or metric thread
• Electrical connection: silicone cable, standard length 1m
• Mounting: by process connection
• Suitable for potentially explosive atmospheres: zone1, zone 2, zone 21, zone 22

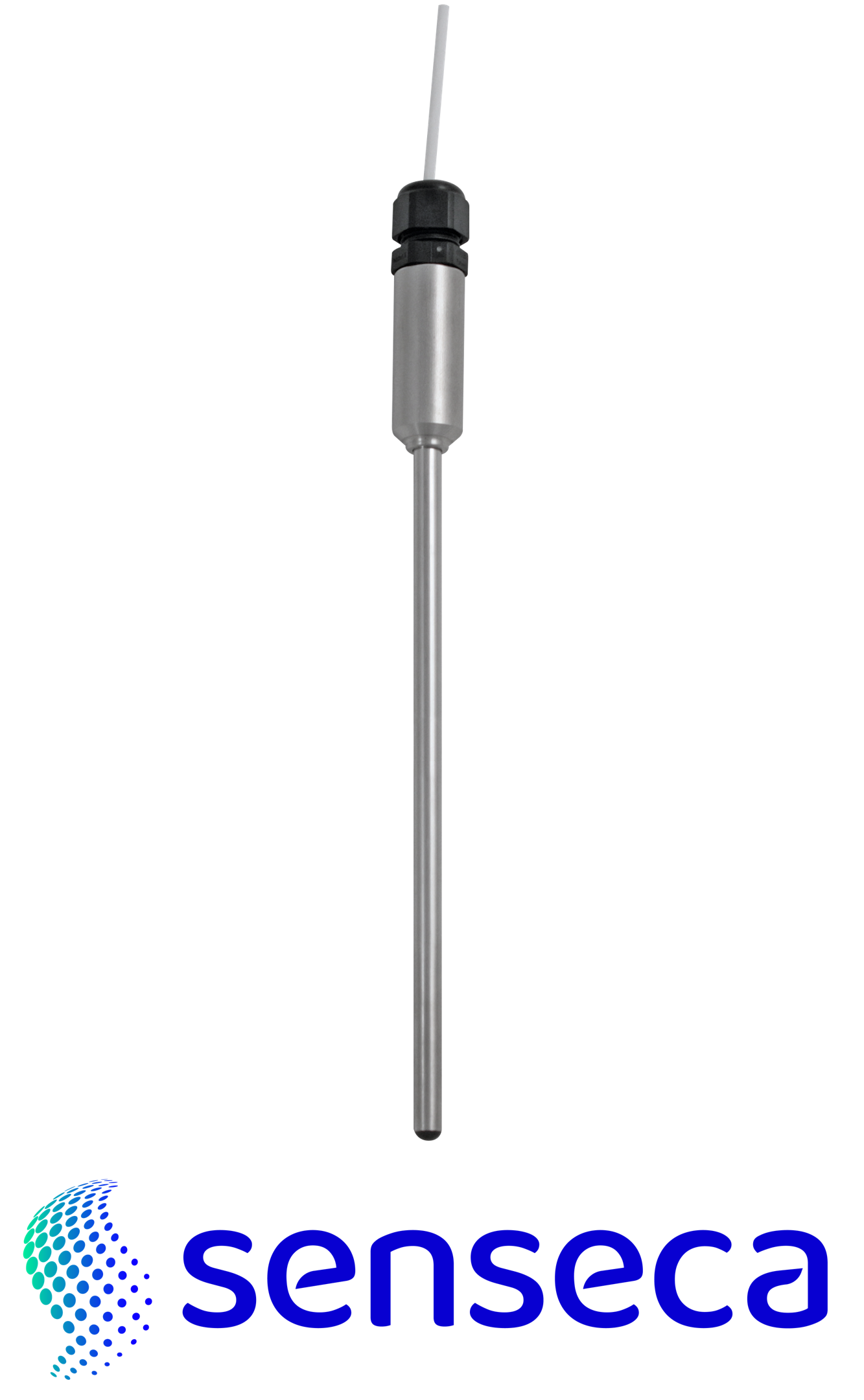

GTF 101-Ex Ex Temperature Probe

• Mounting probe for use in potentially explosive gaseous or dust mixtures
• Potential-free temperature probe made of stainless steel
• Assembled according to customer preferences
• Sensor element : Pt100, PT1000 (sheathed element), 4-wire; type K (NiCr-Ni) or type N (NiCrSi-NiSi) sheathed thermocouple
• Measuring range
• Pt100 / Pt1000 : -200..+100 °C (600 °C with neck tube)
• Type K / type N : -200..+100 °C (900 °C with neck tube)
• Accuracy: Pt100 / Pt1000 : DIN class B, Type K / type N : class 1
• Type of protection : “i” intrinsic safe, “e” increased safety
• Ambient temperature : -20..+60 °C (protection type “e”), -20..+80 °C (protection type “i”)
• Process connection no process connection
• Electrical connection: silicone cable, standard length 1m
• Mounting: by separate clamping ring screw connection
• Suitable for potentially explosive atmospheres: zone1, zone 2, zone 21, zone 22

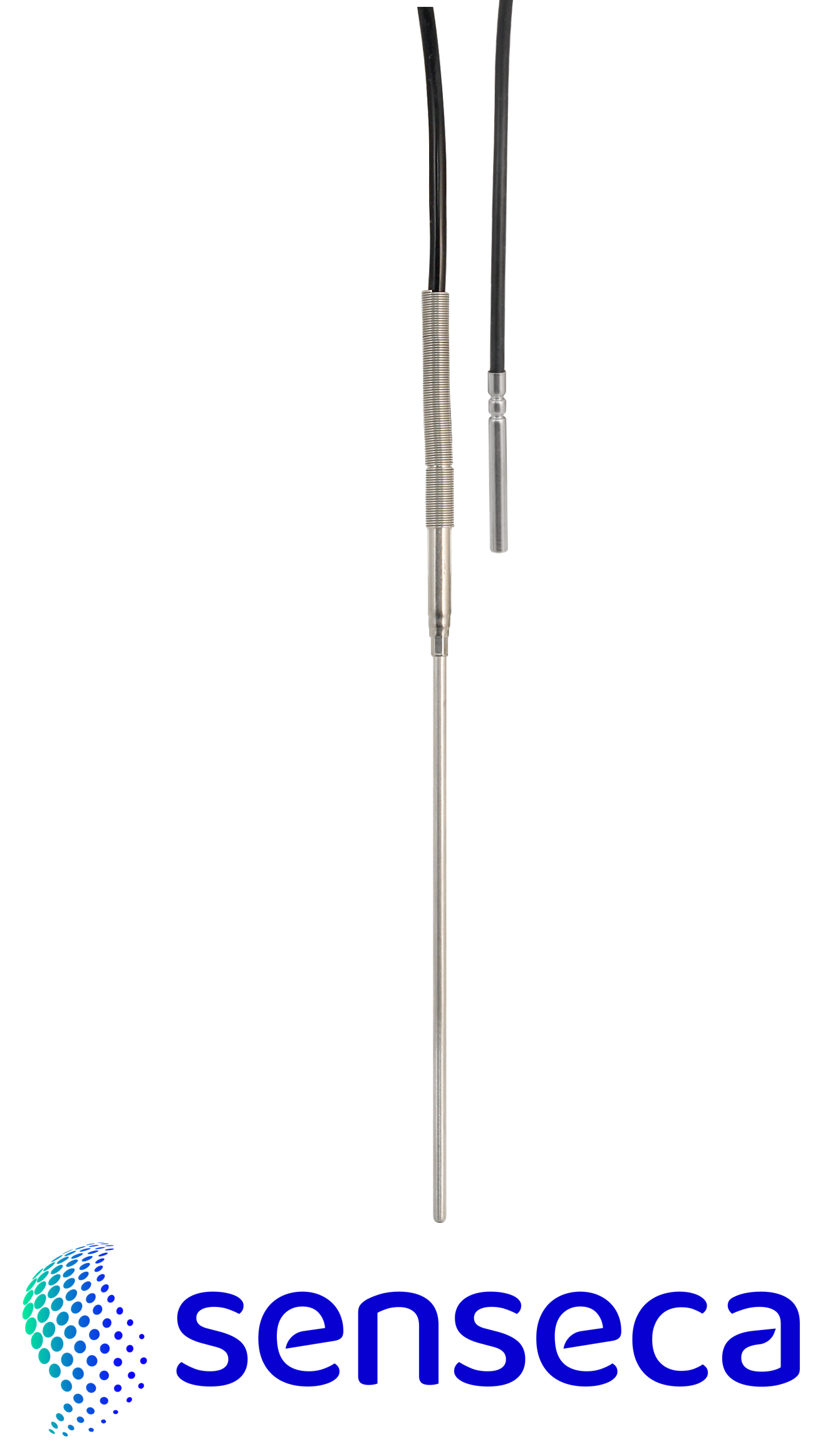

GTF 101 P/ GTF 101 K Industrial Temperature Probe

GTF 101 P Temperature Probe

• Pt100, Pt1000
• With cable (loose ends)
• Very robust
• Measuring range MB
• MB 1 : -50..+200 °C
• MB 2 : -50..+250 °C
• MB 3 : -50..+400 °C
• MB 4 : -200..+250 °C
• Probe diameter D : 3 mm, 4 mm, 5 mm, 6 mm, 8 mm
• other diameters upon request
• Fitting length EL : 50 mm, 100 mm, 150 mm, 250 mm, 500 mm, 1000 mm, 1500 mm other fitting lengths possible
• Accuracy : DIN class B, DIN class A, 1/3 DIN class B, 1/10 DIN class B
• Cable : 1 m (standard), loose ends

GTF 101 K Temperature Probe

• NiCr-Ni (type K)
• With cable sleeve and cable (loose ends)
• Very robust
• Measuring range MB
• MB 1 : -50..+200 °C
• MB 2 : -50..+250 °C
• MB 3 : -50..+400 °C
• Measuring range : -200..+1150 °C
• Probe diameter D : 0.5 mm, 1 mm, 1.5 mm, 3 mm, 6 mm other diameters upon request
• Fitting length EL : 150 mm, 250 mm, 500 mm, 1000 mm, 1500 mm, other fitting lengths possible

GTF 300 Temperature Wire Probe and GMF 250 Magnetic Surface Probe

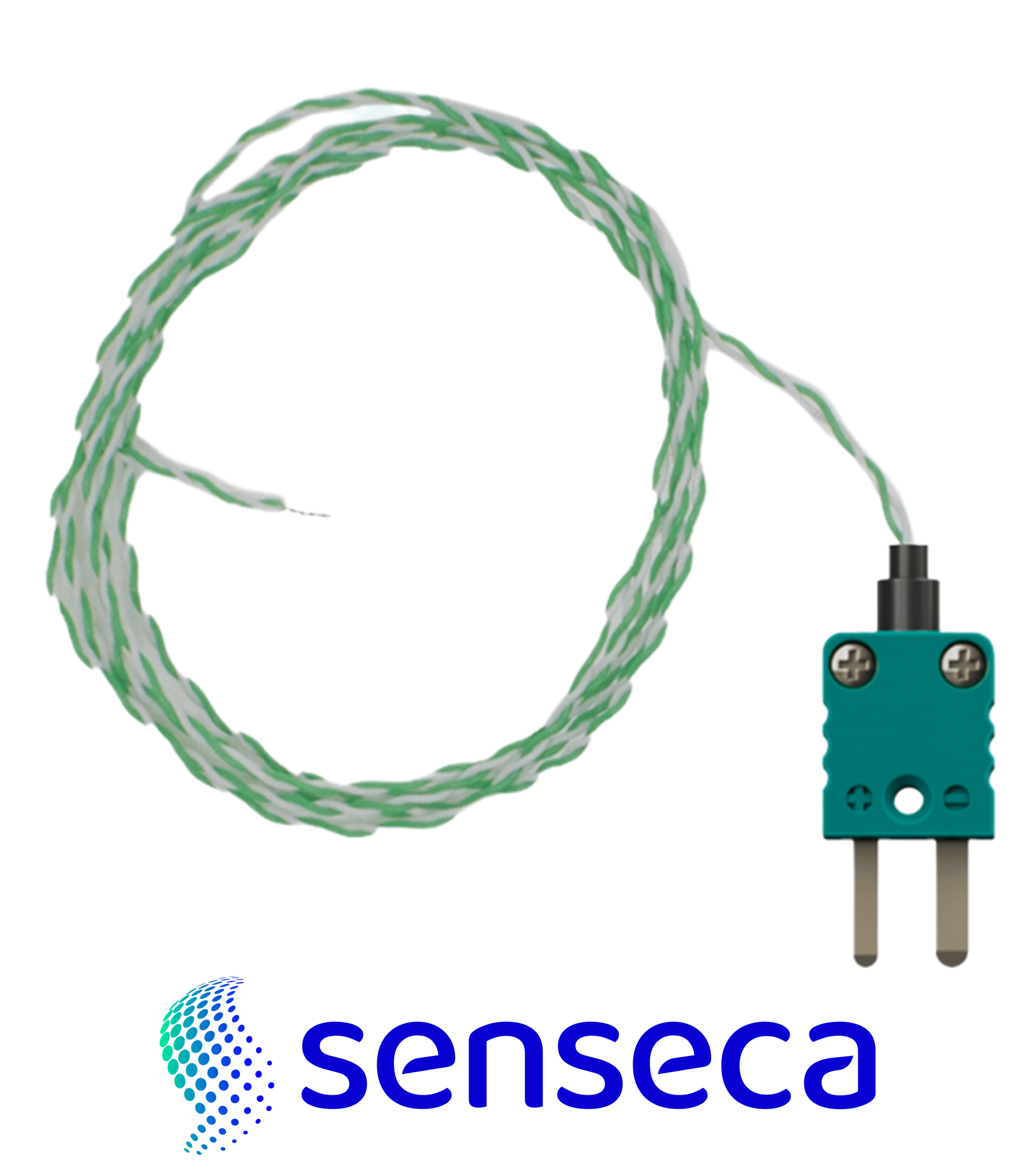

Wire Probe GTF 300

• NiCr-Ni wire probe (type K)
• Quick-response measurements in air,gases, liquids
• For very small surfaces
• Thermocouple : NiCr-Ni (type K)
• Measuring range : -65..+300 °C
• Response time (T90) : approx. 0.3 s
• Accuracy : class 1
• Thermocouples wires : 1 m Teflon insulated twisted wires
• Measuring point : connection point of wires measuring tip (twisted welded)
• Connection : miniature flat-pin plug NST1200

Magnetic Surface Probe GMF 250

• NiCr-Ni-probe (type K)
• Self-adhesive on magnetic surfaces
• Resilient measuring sensor
• Thermocouple : NiCr-Ni (type K)
• Measuring range : -65..+250 °C
• Response time (T90) : approx. 5 s
• Accuracy : class 1
• Thermocouples wires : 1 m Teflon insulated twisted wires
• Measuring point : magnetic, resilient measuring sensor with Cu-plate Ø 5 mm
• Connection : miniature flat-pin plug NST1200

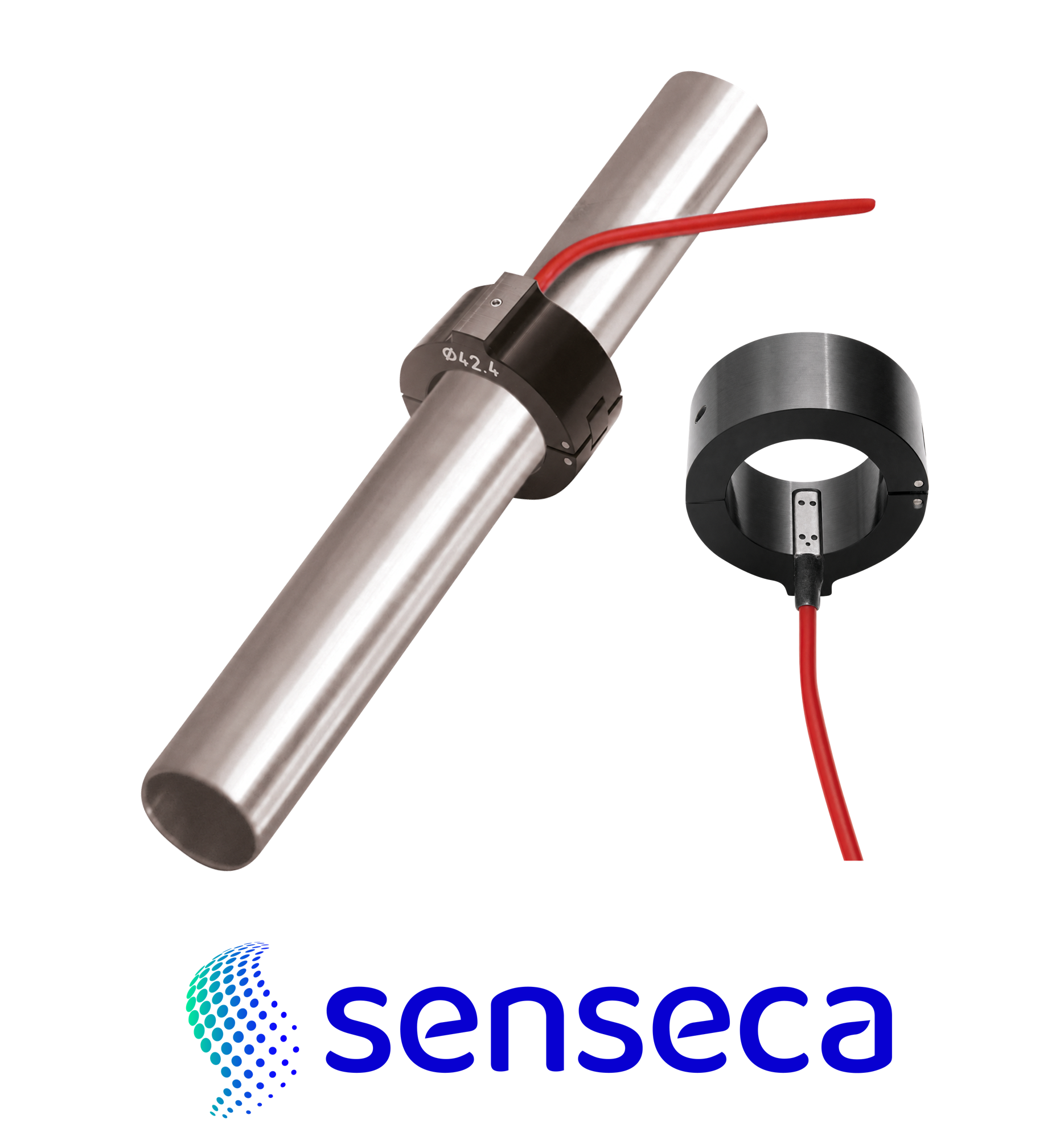

GTL720/GTL723 Clamp-on Temperature Sensor

• Simple mounting via clamp-on adapter without media contact
• High accuracy even without thermal compound
• Fast response time
• Replacing/cleaning of the sensor without process interruption
• Pt100 Sensor 3-wire connection of transmitter 4..20 mA, 2-wire connection
• Transmitter programmable via GTL Configuration tool
• GTL720 – Pt100 (applicable in Ex-areas)
• GTL723 – Pt100 with transmitter 4..20 mA

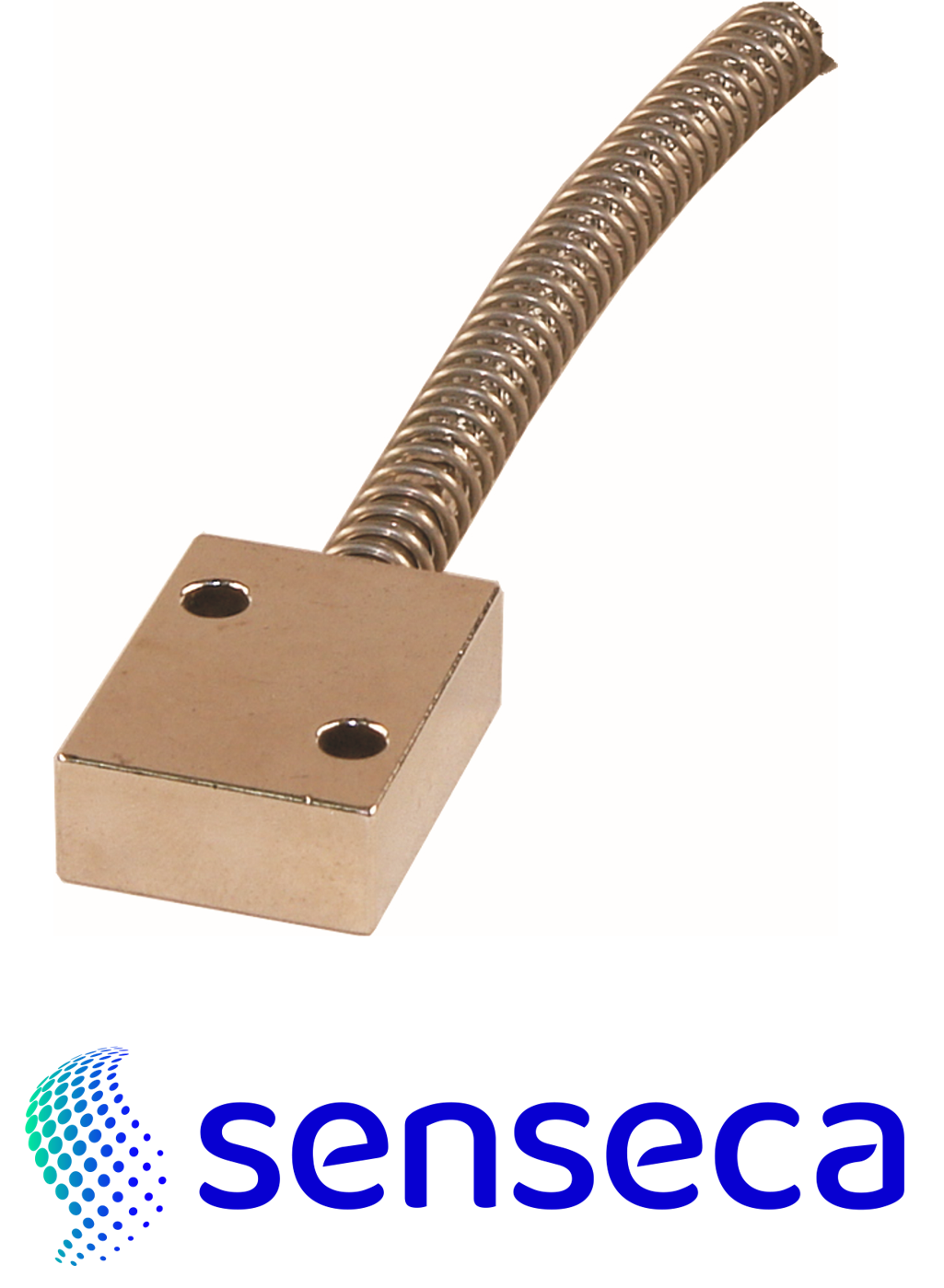

7131 Surface Probe

• Thermocouple Fe-CuNi (type J); NiCr-Ni (type K)
• RTD Pt100, class B
• Surface sensor
• Sensor case brass nickel plated
• Cable type flexible fiberglass insulation with steel wire braiding or Teflon-Silicon-insulation

7134 / 7135 Ambient Temperature Sensor

Characteristics 7134

• RTD Pt100
• Operating temperature -50 °C..+90 °C
• Measuring element inside- or outside
• Plastic case Polycarbonate, white
• Protection class IP65
• Screw terminals

Characteristics 7135

• RTD Pt100
• Operating temperature -40 °C..+120 °C
• Measuring element outside
• Aluminum case RAL7001, Lid with Silicon sealing
• Protection class IP65
• Screw terminals

8105 Duct Temperature Sensor

• RTD Pt100 Class B, fast response
• 2-wire; usable as 3-wire sensor
• Protective tube 4 mm, stainless steel 1.4571 ∅
• Connection head form P, DIN 43729, IP65
• Flange mounting

8100/A, 8100/C Temperature Sensor

• Thermocouple Fe-CuNi (type J); NiCr-Ni (type K)
• RTD Pt100/Pt1000 class B
• 8100/A – Pt100 class B
• 8100/C – Pt1000 class B
• Protective tube, stainless steel 1.4571
• Connection head form BK/PK, DIN 43729, IP65
• Head transmitter optional

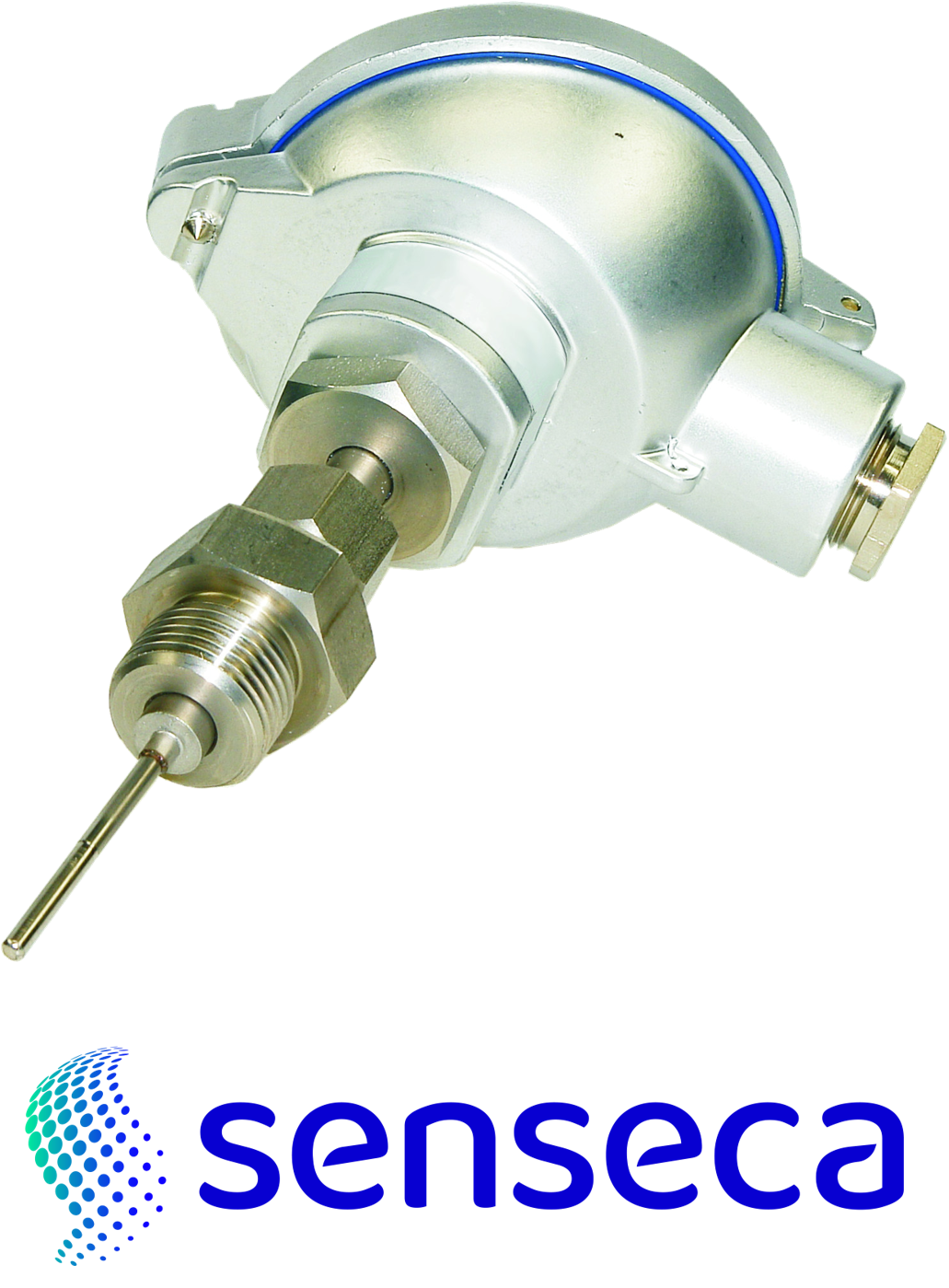

TC293 Safety Thermocouple Sensor

• Fast response sensor for measurement in exhaust gas and air
• Certified as Sensor for Safety Temperature Limiters STL50 for gaseous media acc. to SIL 2 (DIN EN 61508) and DIN EN 14597 (substitute DIN 3440)
• Ex certified to ATEX Ex-i GD for gases and dust
• Sensor with 2 x thermocouples J, K or N, isolated
• Max. operating temperature depends to the thermocouple
• Process pressure 25 bar
• Protection tube D = 9/3 mm, Inconel 600 W-No. 2.4816
• Process connection clamp gland G ½ B
• Terminal head BSZ (Aluminum) IP65 with snap-lid
