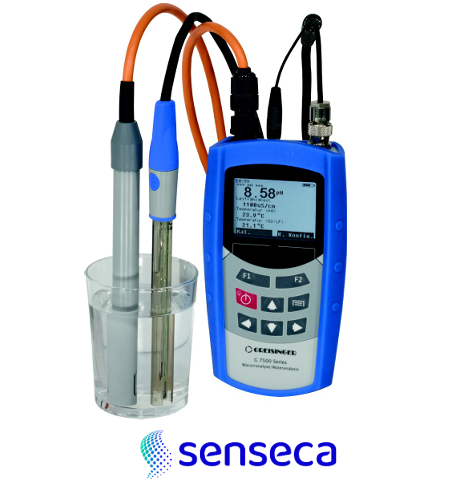

G 7500-PH / CON / O2 MultiSensor water analysis handheld instrument set
- Input no.1 pH / Redox
- Measuring range: -2.00 … +16.00 pH (± 0.25% FS @ 25 ° C) or -1500 … +1500 mV Redox voltage (± 0.25% FS @ 25 ° C)
- Temperature : -10.0 … +150.0 ° C (Pt1000) ± 0.25% FS connection via 4 mm banana or O 2 / LF sensor
- Input no.2
- Temperature: -10.0 … +110.0 ° C (NTC or Pt1000) measuring range (Pt 1000), -10.0 … +110.0 ° C measuring range (NTC 10k), -10.0 … +110.0 ° C (integrated in O 2 / LF sensor)
- Conductivity
- measuring range: 0 μS / cm … 500 mS / cm (± 0.5% FS @ 25 ° C)
- Salinity / PSU: 0.0 … 70.0 g / kg
- Cell constant: 0.3 … 1.6000 1 / cm
- Dissolved oxygen
- Measuring range:
- Oxygen saturation: 0.0 … 500.0% sat
- Oxygen concentration: 0.0 … 50.0 mg / l
- Oxygen partial pressure: 0 … 1013 mbar O 2 (accuracy depending on sensor and calibration with flow> 20 cm / s , add. ± 1.5% FS @ 25 ° C, 100% sat, O 2 )
- Scope of supply: Device with 3 AAA batteries, quick reference guide, operating manual and test report as pdf on mass storage device, GE125-L02 + accessories , LF425-L02 + accessories, GWO5610-L02 + accessories, GKK 2021
- Application: monitoring of bodies of water, drinking water preparation, sewage treatment plants, fish husbandry and aquaculture, vertical / urban farming conventional agriculture
