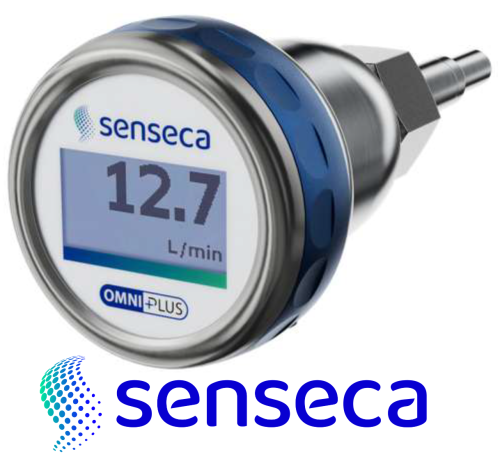

OMNIPLUS-F Thermal Flow Sensor
- Flow transmitter for water and other liquids with integrated temperature measurement
- Fast response time
- Integrated volume meter with preset
- Measuring method without moving parts, no wear
- Stainless steel material coming into contact with medium
- 1 analog output (20 mA / 10 V)
- 2 versatile configurable switching outputs
- IO-Link interface
- High-resolution graphic LCD
- Parameters programmable with multifunction ring
- Waterproof all-metal housing (IP67)
- Mineral glass front, scratch-proof and chemically resistant

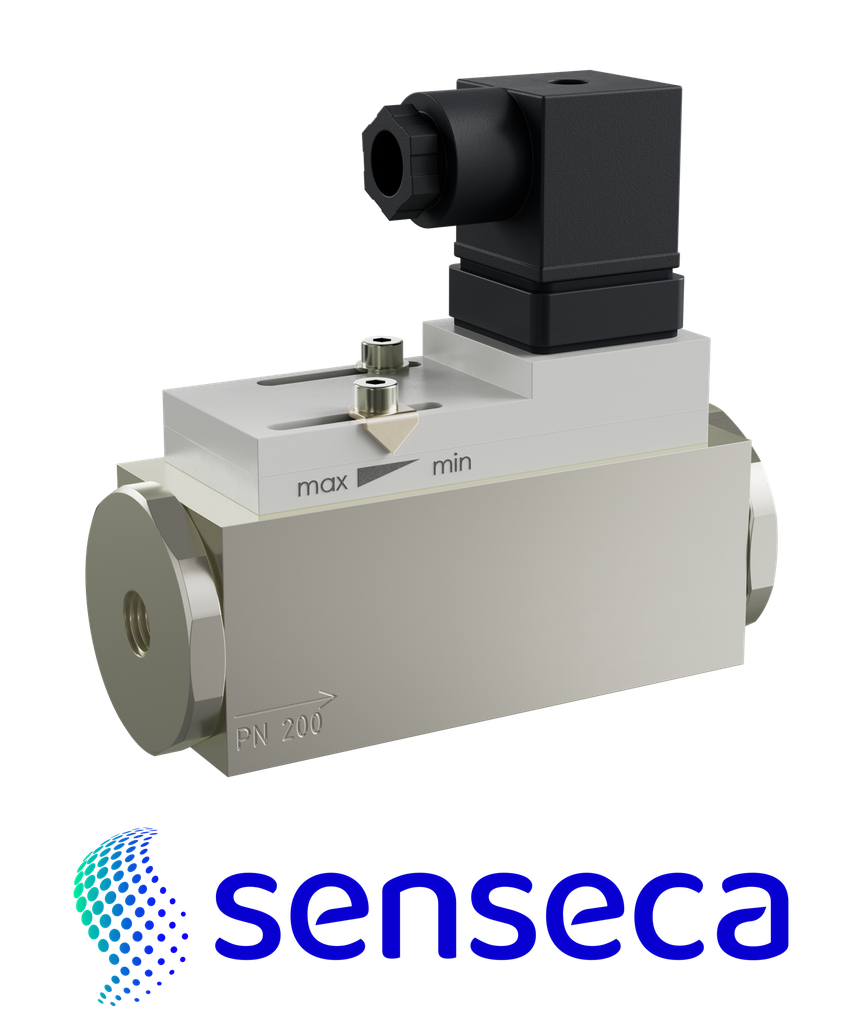

MR1K- Flow Switch
- Piston functional principle
- Reed switch
- Nominal widths DN 8 to DN 25
- Brass/stainless steel materials
- Nominal width DN 8..25
- Process connection: female thread G 1/4..G 1
- Switching range: 0.4..60 l/min
- Pressure resistance: PN 200 bar optionally PN 500 bar
- Media temperature: -20..+120 optionally -20..+150 °C
- Media water: Ingress protection IP 65
- Electrical connection: plug DIN 43650-A / ISO 4400, optionally
- round plug connector M12x1, 4-pole

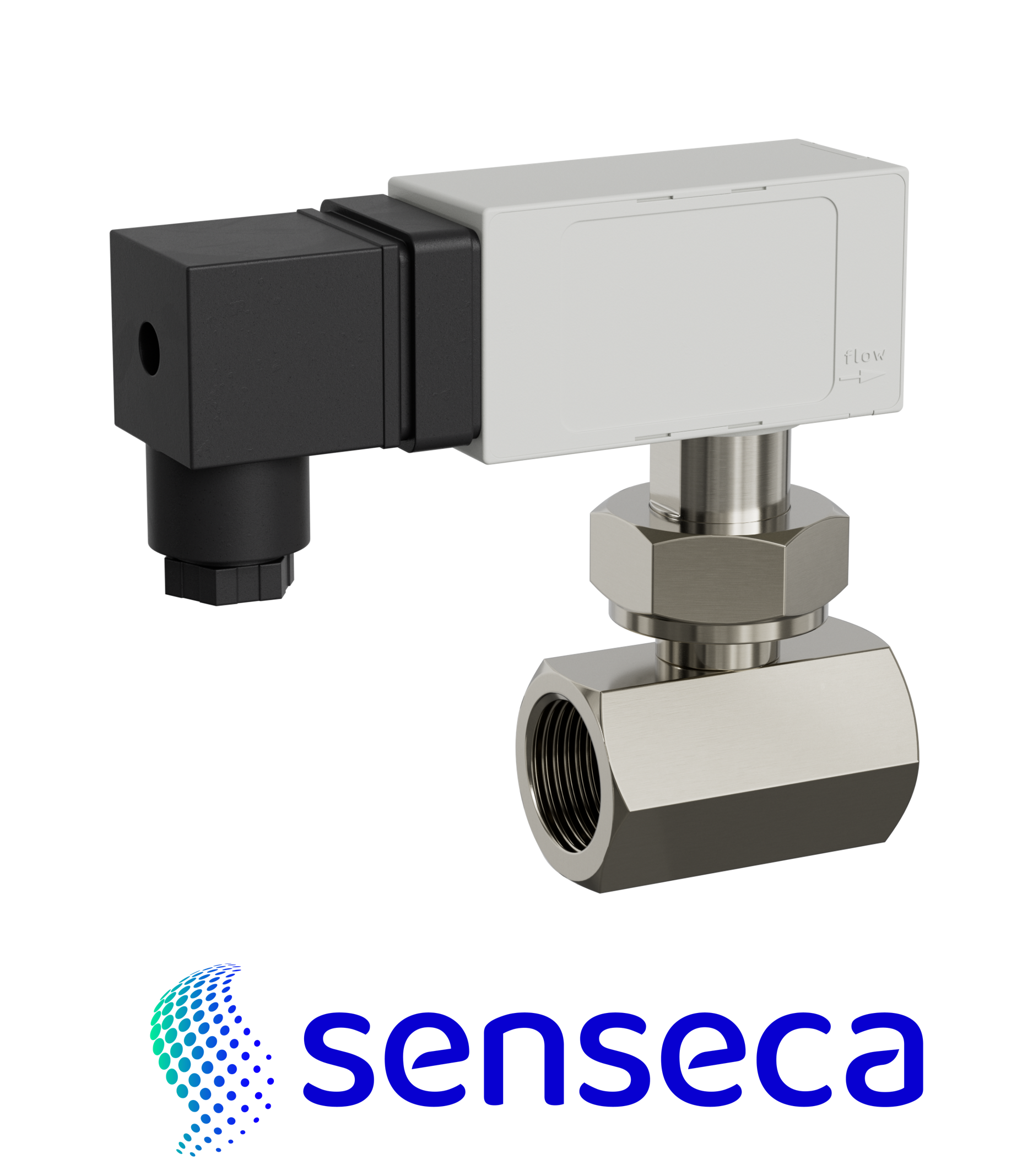

UM3K-…G / A Flow Switch
- Paddle type Flow Switch
- Operate by Spring-supported Paddle with magnetic triggering of a Micro switch rated at 250 VAC, 5A
- Metering substances: water, gas/air, oil
- Adjustable ranges from 4 to 93 l/min
- Nominal Diameter from DN 10 to DN 50
- G 3/8 to G 2 female thread, Brass/Stainless Steel design
- Max. PN 25 bar, Max. temperature 110°C
- Protection: IP 65
- Threaded connection
- Low pressure loss
- Compact design
- Plug DIN 43650-A / ISO 4400

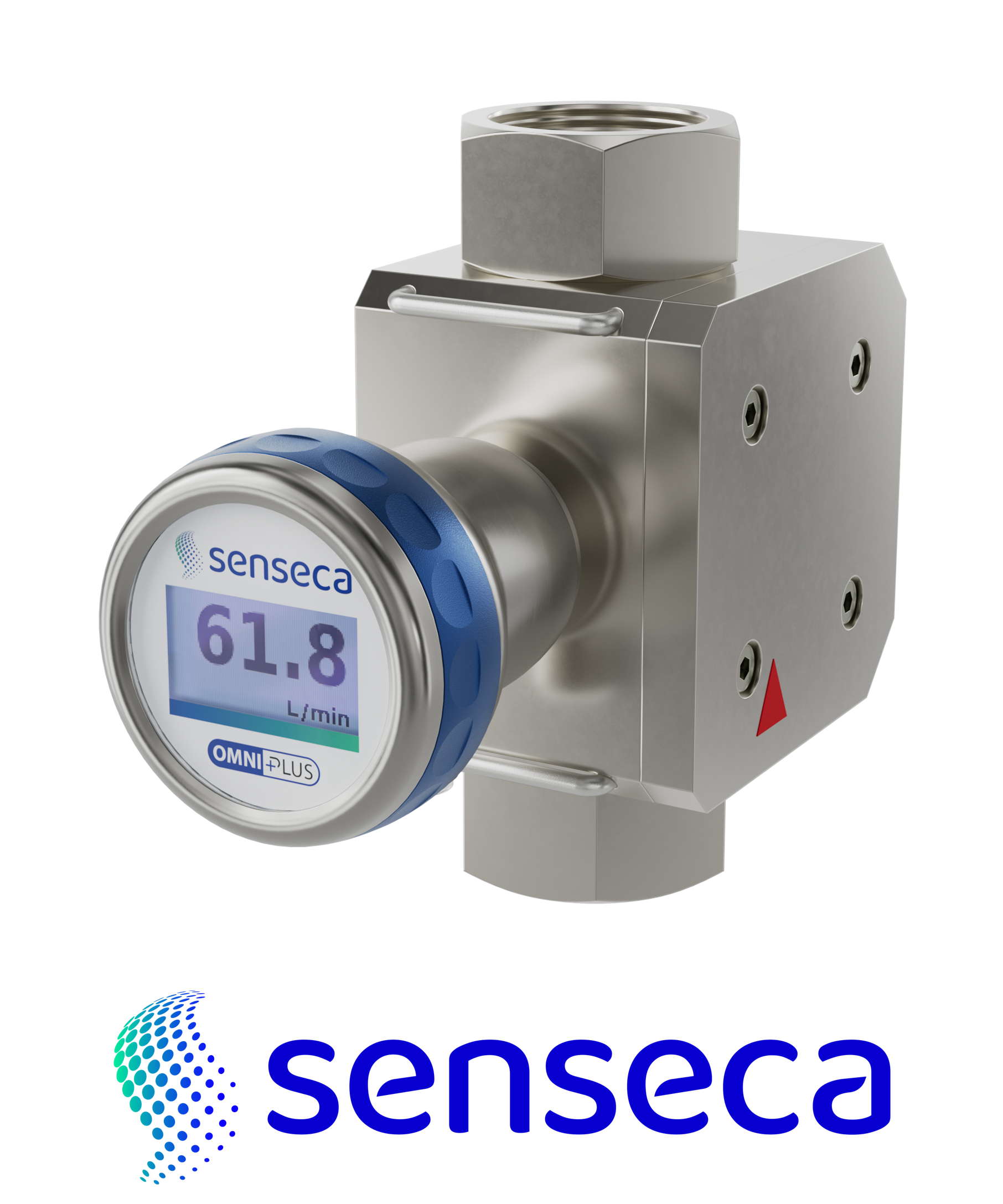

OMNIPLUS-RRH-025 Flow transmitter
- Flow transmitter for water and low-viscosity liquids
- A PVDF rotor with magnets turns in the flowing medium
- A Hall sensor outside the flow chamber detects the rotor speed, which changes linearly with the flow rate
- Covering 2…100 l/min in DN 25 up to PN 100, with LCD, IO-Link, analog output and two configurable switching outputs
- Medium temperatures from 0…+70 °C and pressure ratings up to PN 100
- Wetted parts include nickel-plated CW614N or 1.4305 housing materials, PVDF rotor, Iglidur X bearings, ceramic axis and FKM seal, with NBR or EPDM options
- Long life due to high-quality ceramic axle and special plastic bearings
- No inlet and outlet sections required
- Modular design with different connection systems
- Connections can be plugged in and rotated

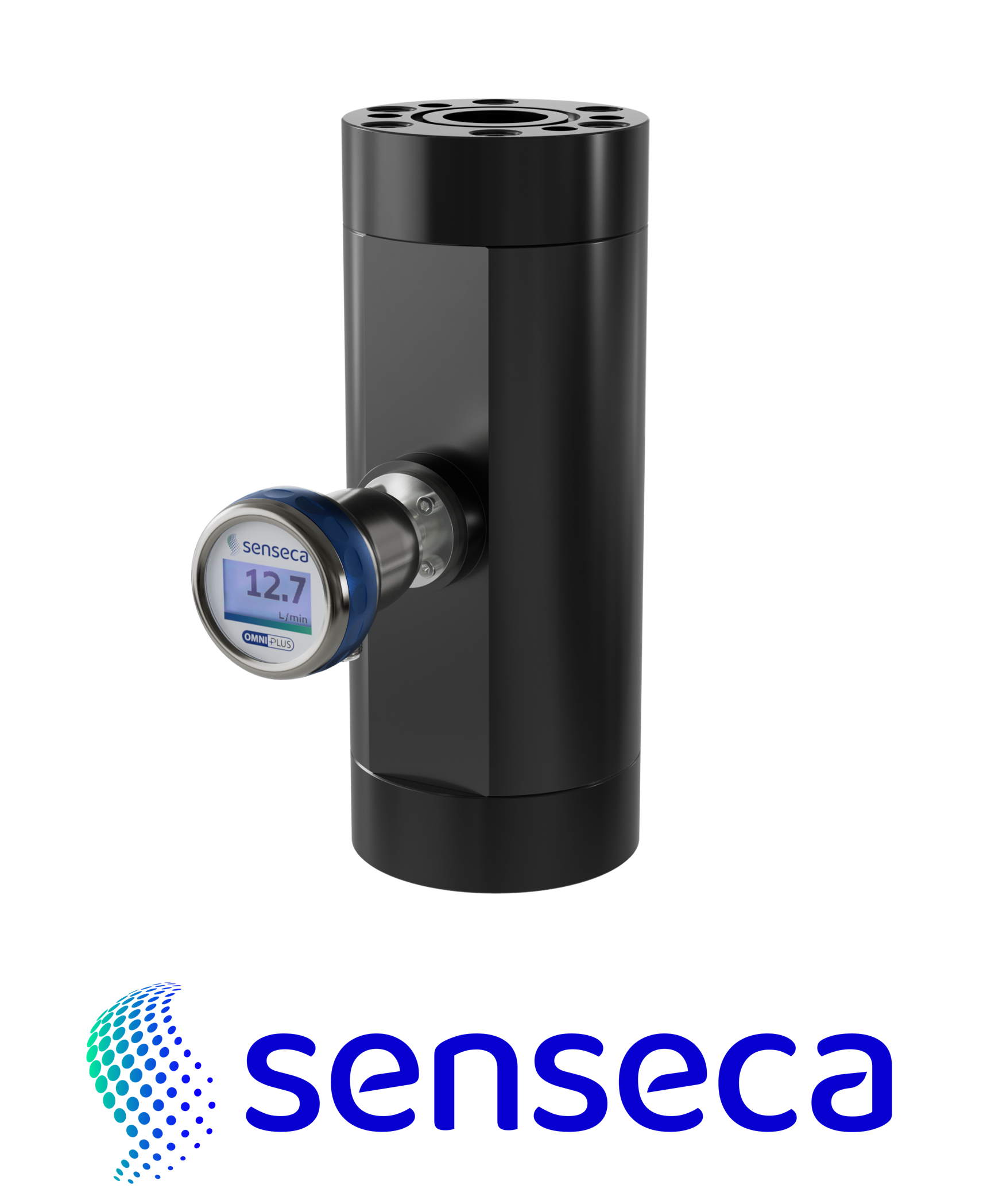

OMNIPLUS-VHS Screw flow transmitter
- Screw flow transmitter for viscous oil flow measurement
- covering 1.4…1500 l/min for oil and lubricating fluids
- 1.2 inch LCD, IO-Link, analog output and two configurable switching outputs
- Versions are available with G 1…G 2 internal threads
- SAE flanges are available as accessories for installation in the pipeline
- The flow chamber contains no magnets. One pulse corresponds to a defined measuring volume
- The electronics detect the flow direction and use it to control the integrated totalizer, which counts additively or subtractively
- IP65 / IP67 protection and PN160 or PN350 ratings fit demanding pipework
- The body is aluminum; connections are aluminum or optional steel
- Wetted parts include steel measuring screws and FKM seals

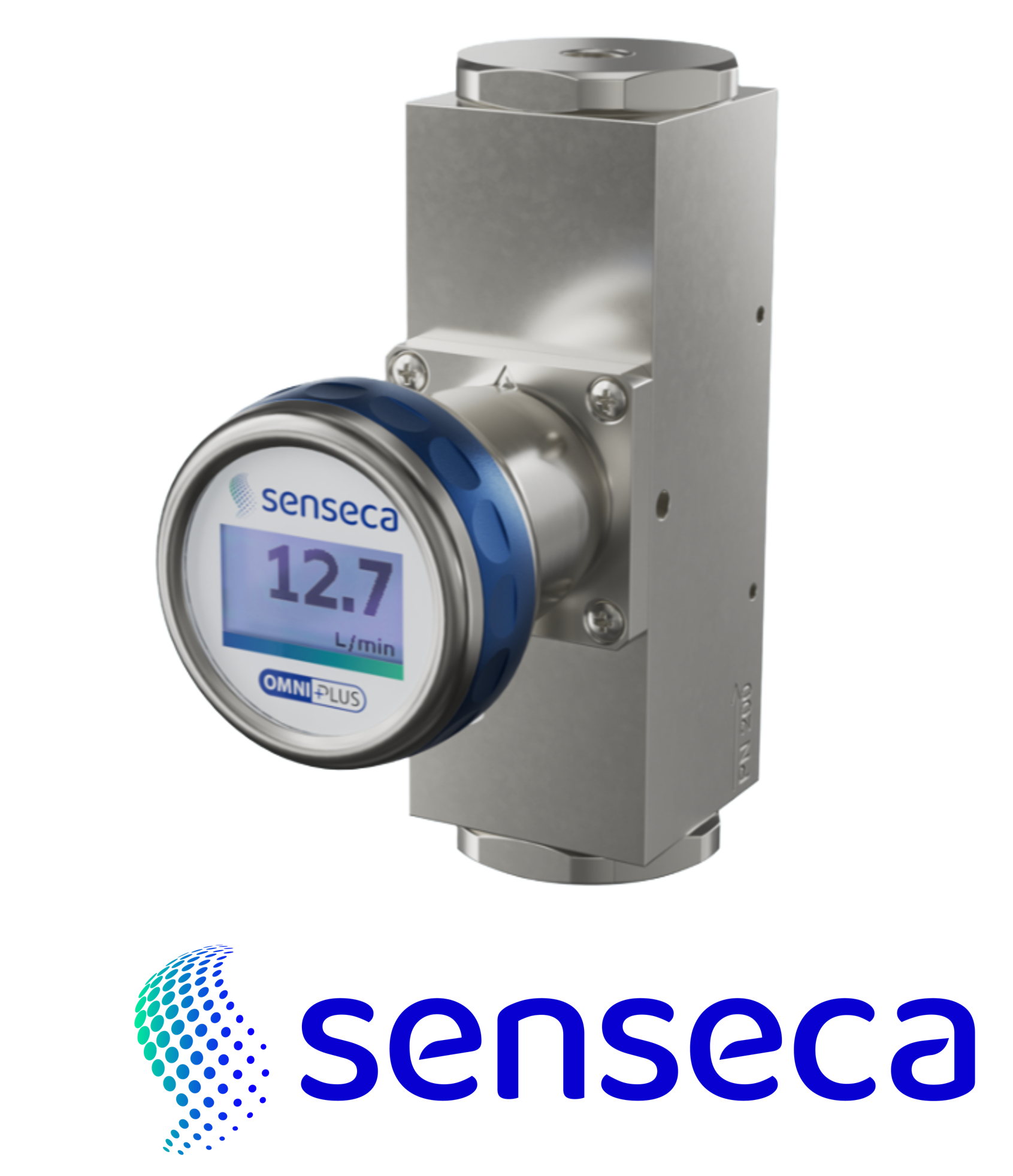

OMNIPLUS-HD2 Piston inline flow transmitter
- Robust industrial-grade flowmeter
- for use with viscous media (viscosity stabilized)
- Viscosity-stabilized design measures oils and viscous media from 30 … 330 mm²/s
- High compressive strength (PN 200, optional PN500)
- covers DN 8 … DN 25 and measuring ranges from 0.5 … 8 l/min up to 12.0 … 60 l/min for viscous media
- The devices use female threads from G 1/4 to G 1
- Further connection types are available on request according to the source
- No inlet and outlet sections required
- One analog output (10V or 20 mA switchable)
- Two switching outputs
- 1.2 inch LCD uses white backlighting and red backlighting for alarm messages
- IO-Link interface
- Available in brass and stainless steel versions, with an optional extended temperature range to +150 °C using distance pieces

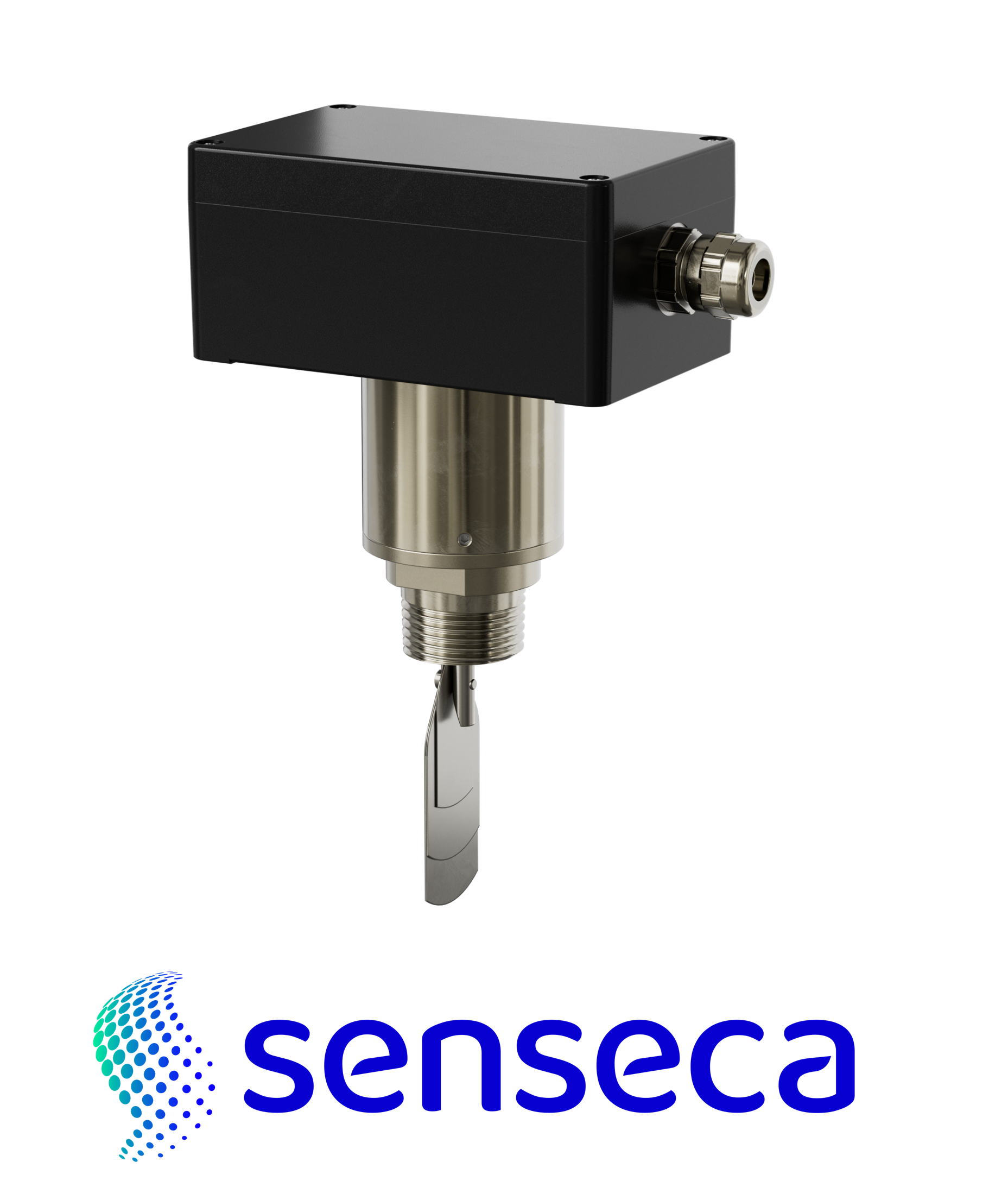

UBX Flow switch
- Paddle type flow switch, Baffle plate functional principle
- Suitable for nominal sizes DN 65, DN 80 und DN 100
- Microswitch with bi-level gold contact
- System connection with oval flange or male thread R 1“
- Adjustable range (for decreasing flow): DN 65: 6.0 m3/h ± 2.0, DN 80: 10.5 m³/h ± 2.5, DN 100: 20.5 m³/h ± 3.0
- Pressure rate: PN 16 bar
- Medium temperature: -40..+140 °C (no superheated steam)
- Ambient temperature: -40..+90 °C
- Media: Water, mineral oil, silicone oil, ester oil
- Ingress protection: IP 65 / IP 67
- Electrical connection: Cable gland M16x1.5
- Brass/stainless steel materials

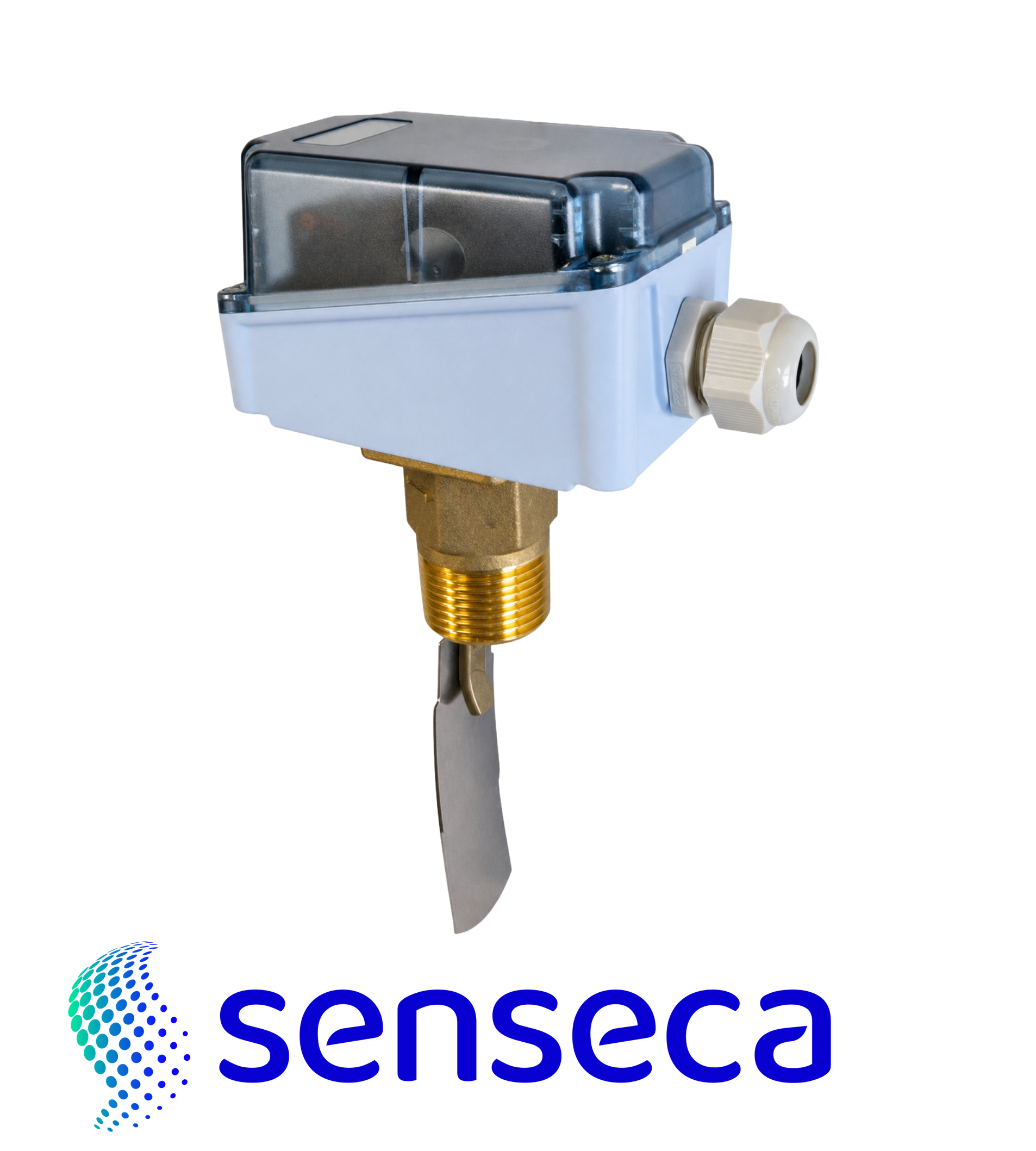

CRG-025HM/HK Flow Switch
- Paddle type flow switch, Baffle plate functional principle
- Can be used from nominal width DN 25..200
- Suitable for media with ferritic particles
- Switch: micro switch
- Nominal width: DN 25..200
- Process connection: male thread R 1 “
- Switching range: 0.2..165.7 m3/h
- Pressure resistance: PN 11 bar
- Medium temperature: 20..+120 °C
- Ingress protection IP 65
- Electrical connection: cable screw gland M20x1.5
- Brass/stainless steel materials

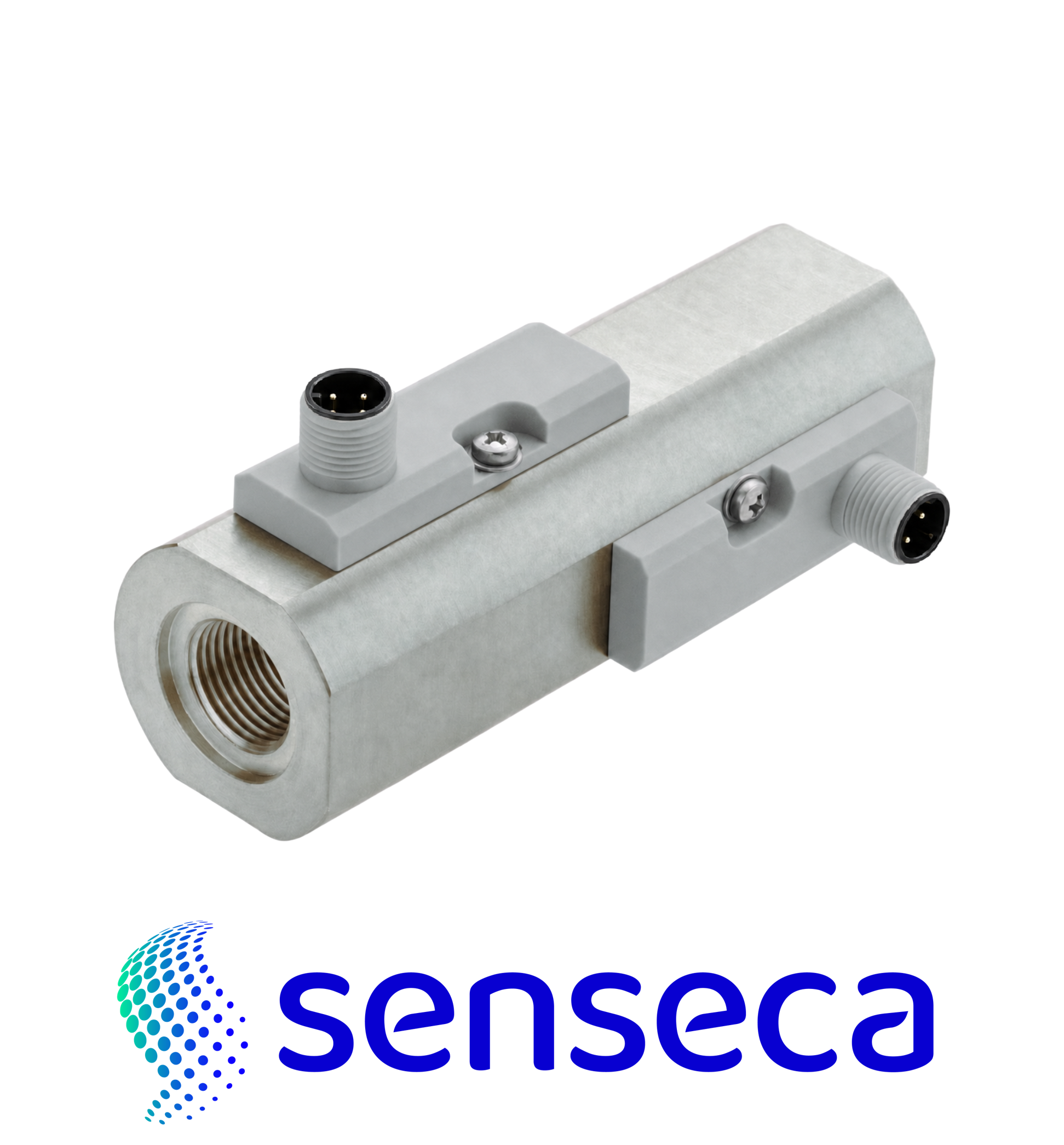

FW4V Flow Switch
- Mechanical flow switch for oil flow monitoring with bidirectional detection
- Viscosity-stabilized for oils from 30..330 mm²/s with ±10 % tolerance
- DN 15 body with G1/2 female thread fits space-limited flow monitoring points
- Two switchpoints for forward and backward flow direction
- Designed for demanding circuits with pressure resistance up to PS 300 bar
- The switching point is set at the factory to 1 l/min for horizontal decreasing flow
- The reed switch operates as a normally open contact with maximum 230 V AC, 0.5 A and 50 VA for ohmic loads
- IP67 housing and M12x1, 4-pin connector support reliable industrial wiring
- Standard installation uses horizontal inflow. Other mounting positions are possible, but the position influences the switching point
- Straight calming sections of 5 x DN are recommended in the inlet and outlet
- Wetted materials include nickel-plated CW614N, 1.4310 and hard ferrite. Non-wetted materials include PC and 1.4305

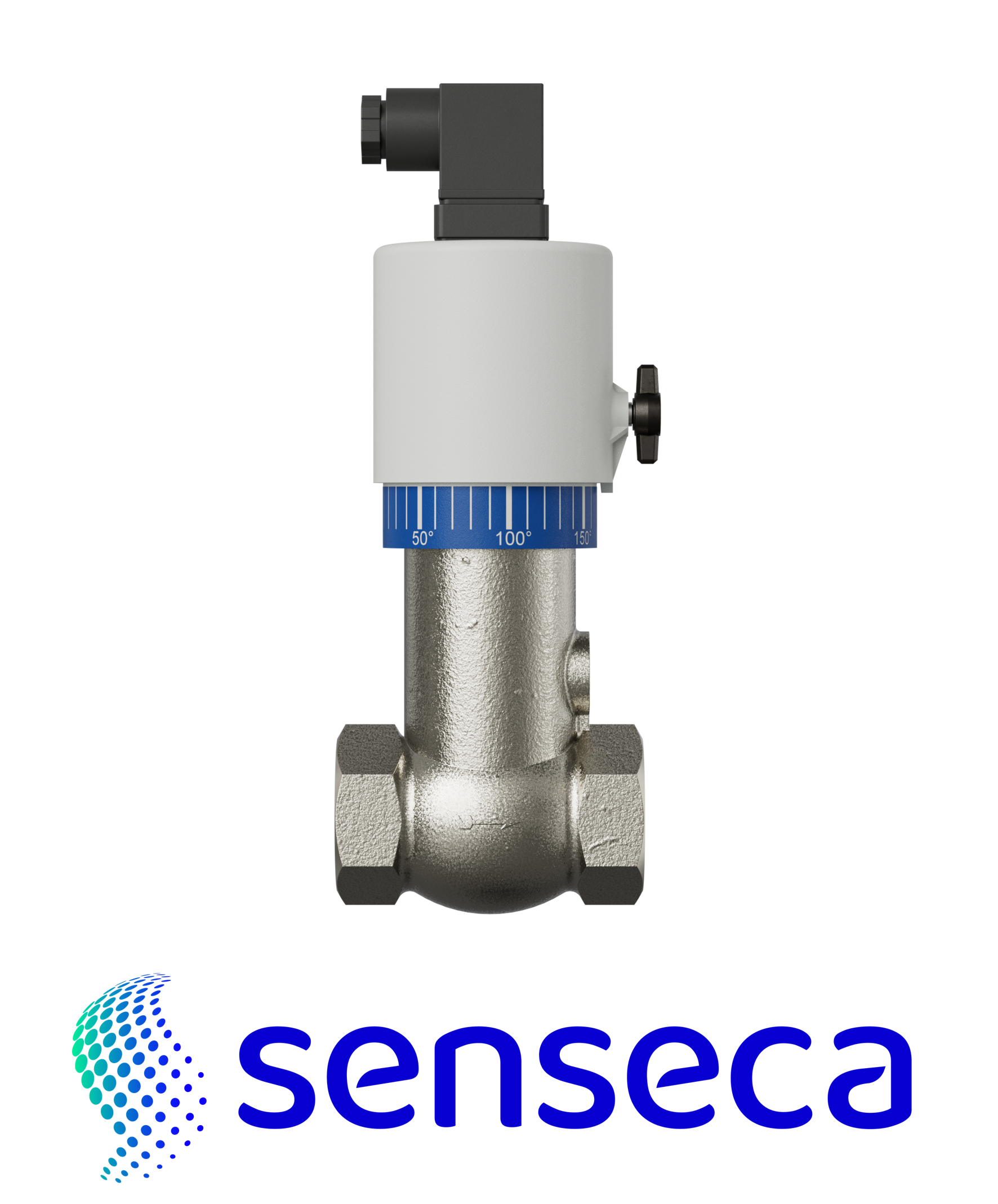

VD-GR Flow Switch
- Mechanical flow switch for water with red brass internal thread
- Piston functional principle
- Reed switch
- Nominal widths DN 8 to DN 80
- Brass material
- Process connection: female thread G 1/4…G 3
- Switching range: 1…600 l/min
- Pressure resistance: G 1/4..G 1 – PN 25 bar, G 1 1/4 ..G 3 – PN 16 bar
- Medium temperature: -20…+120 °C
- Ambient temperature: -20…+70 °C
- Media: water (oils and gases available on request)
- Protection class: 2 – safety insulation
- Ingress protection: IP 44, optionally IP 65
- Connection: plug DIN 43650-A / ISO 4400
- Installation location: Standard horizontal inwards flow

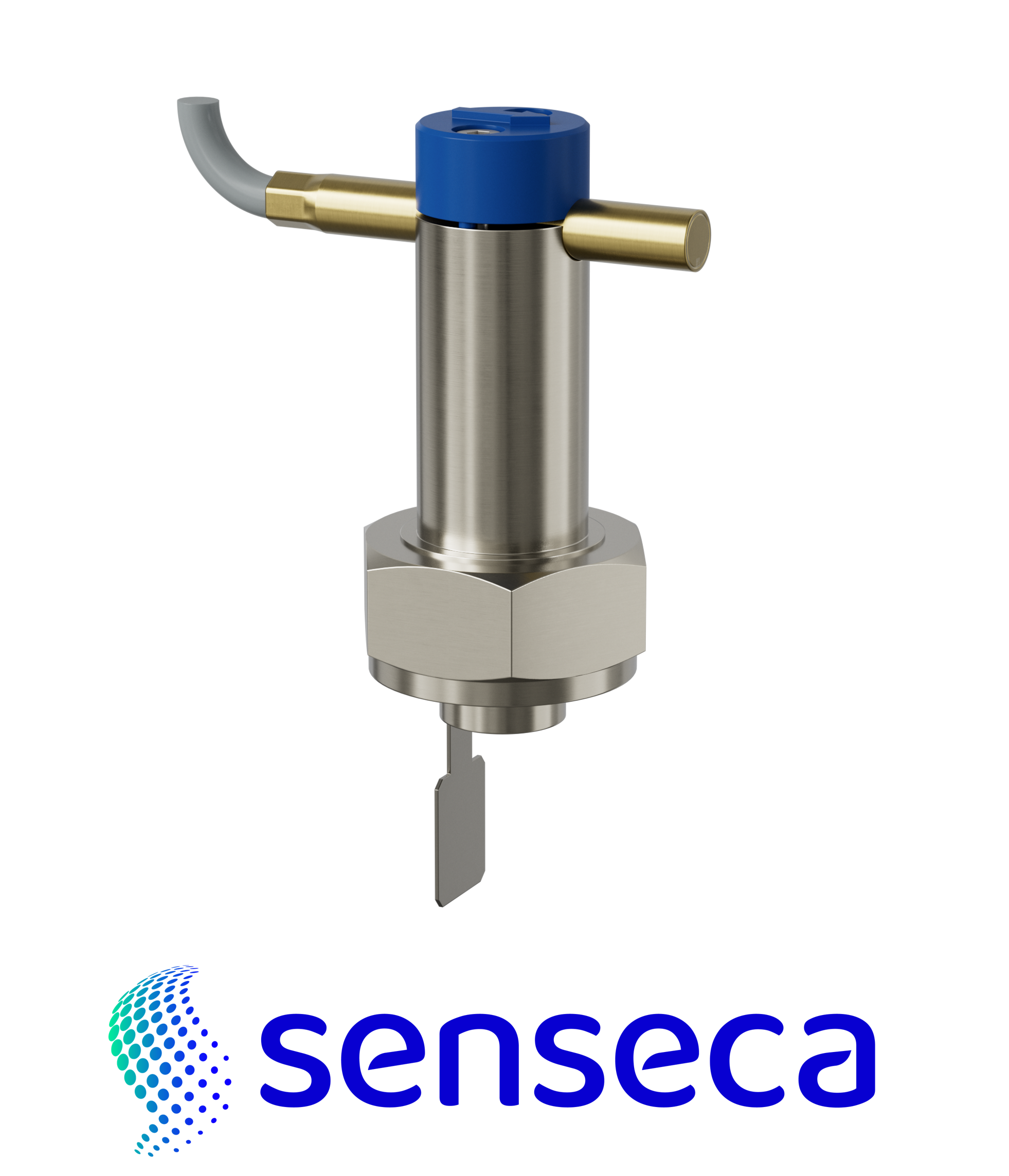

UR1-V Flow Switch
- Operate by a spring-supported paddle with magnetic triggering of a reed switch
- Flow switch for water applications, solder/weld connection
- Nominal width: DN 15…80
- Switching range: 5…174 l/min H2O
- Pressure: PN 25 bar
- Media temperatures from -20…+110 °C and an optional version up to 150 °C
- Media: water (oils, gases and aggressive media available on request)
- Electrical connection: cable 1.5 m
- Installation location: horizontal inwards flow
- Applications: Flow switching in transformers/heat exchangers,
- Testing equipment monitoring, Flow display and monitoring in hot water installations

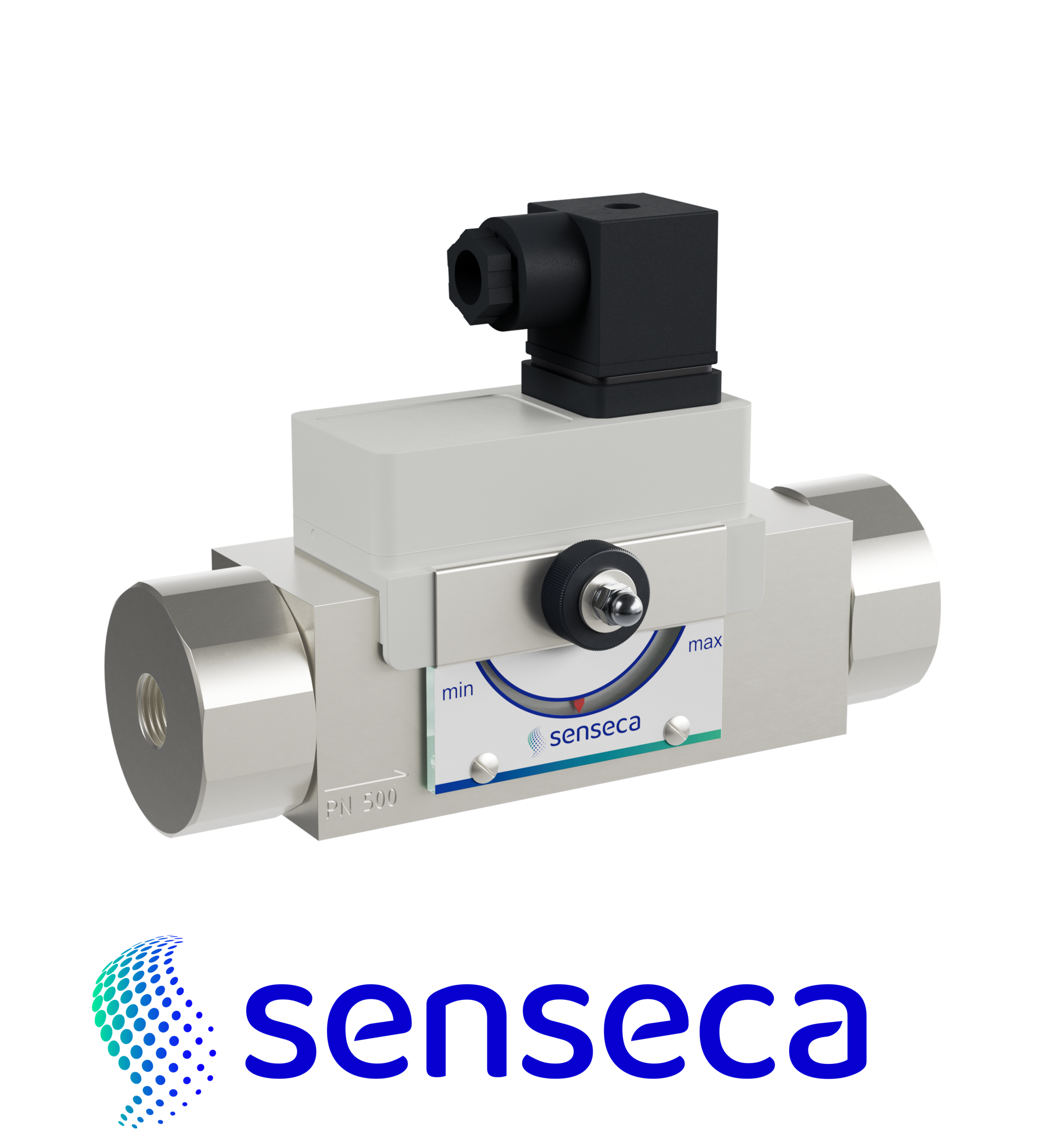

HD1K/HD2K Mechanical Flow Switch
- Piston Inline Design Mechanical Flow Switch
- With spring-supported piston and magnetic triggering of a reed switch
- Robust construction in brass or stainless steel material, IP 65
- HD1K for measuring liquids media, switching range 0.1…80 l/min H2O
- HD2K for measuring viscous media, covering oil switch ranges from 0.5…60 l/min for 30…330 mm²/s
- Process connection: female thread G 1 /4…G 1
- Pressure resistance PN 200 bar optionally PN 500 bar
- Media temperature: -20…+120 °C, optionally -20…+150 °C
- Electrical connection: plug DIN 43650-A / ISO 4400
- Switch head ATEX Option available
- Optional measurement display at side or frontal measurement display
- Applications: Flow switching in high pressure cleaners, Oil monitoring in gearings, Emulsion control in machine tools

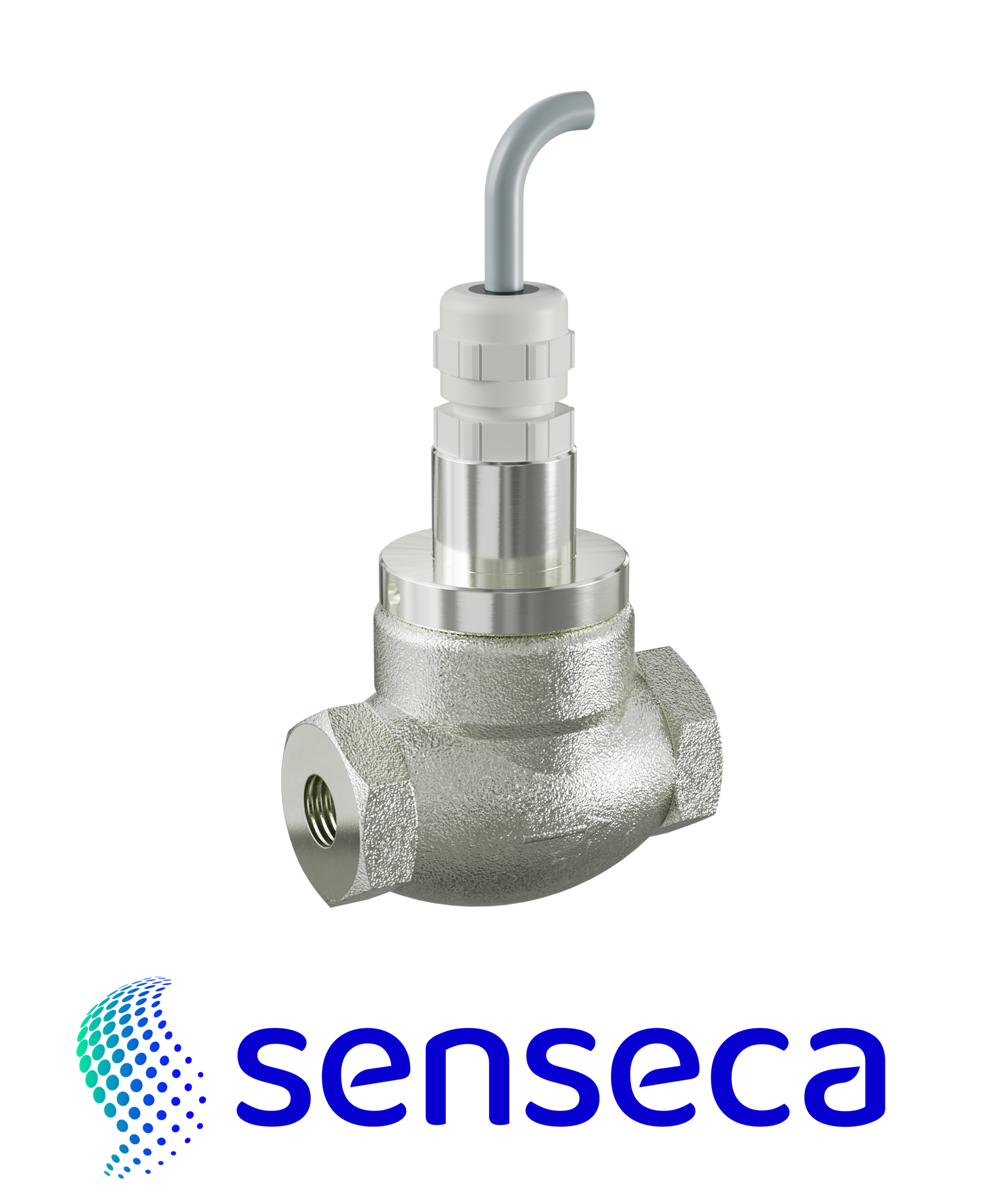

FF….GR Flow Switch
- Piston Valve Design flow switch for water (Oils available on request)
- Piston actuates a hermetically seperated reed switch
- Adjustable Switching Range: 0.4…90 l/min
- Process connection: female thread G 1 /4 ….G 1 1 /4
- Medium temperature : -20..+110 °C
- Pressure resistance: max PN 200 bar
- Electrical connection: cable 1.8 m
- Installation location: horizontal inwards flow
- no external power supply necessary
- Applications: Cooling systems, Lubrication circuits, Industrial metering and monitoring technology

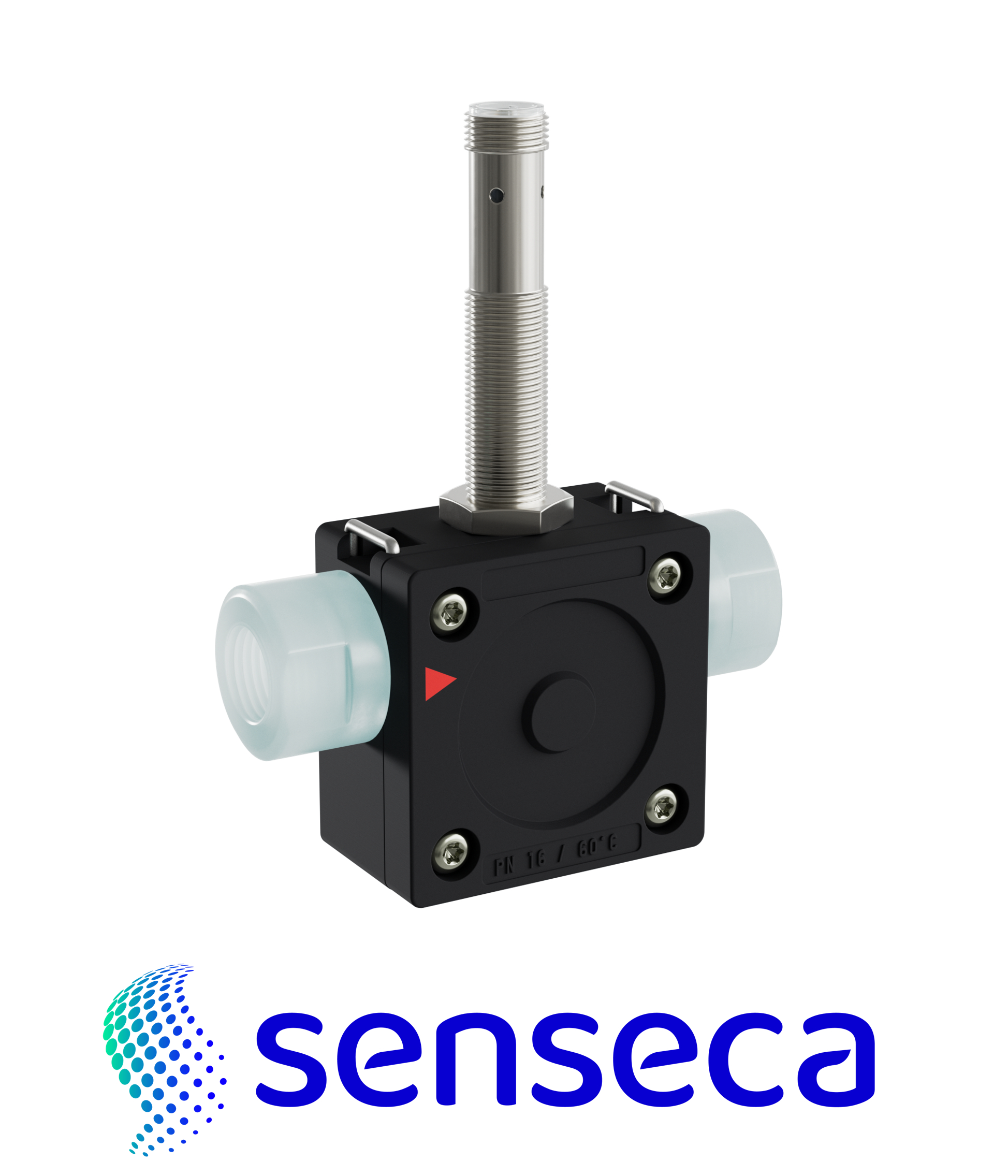

lABOPLUS-RRI-010/025 Flow Transmitter
- Flow transmitter for low-viscosity liquids with IO-Link
- Consists of Rotor Vane which rotation speed is proportional to the volume flow per unit time
- Rotation of the rotor is detected by Inductive Sensor
- Metering substances: water, oil (viscosity up to 10 mm2/s)
- Adjustable range from 0.1…100 l/min in water
- G3/8 to G1 (DN 10 to DN 25) female thread
- (Otherthread type available upon request)
- Max. PN 16 bar, Max. Temperature 60°C
- Protection: IP 67

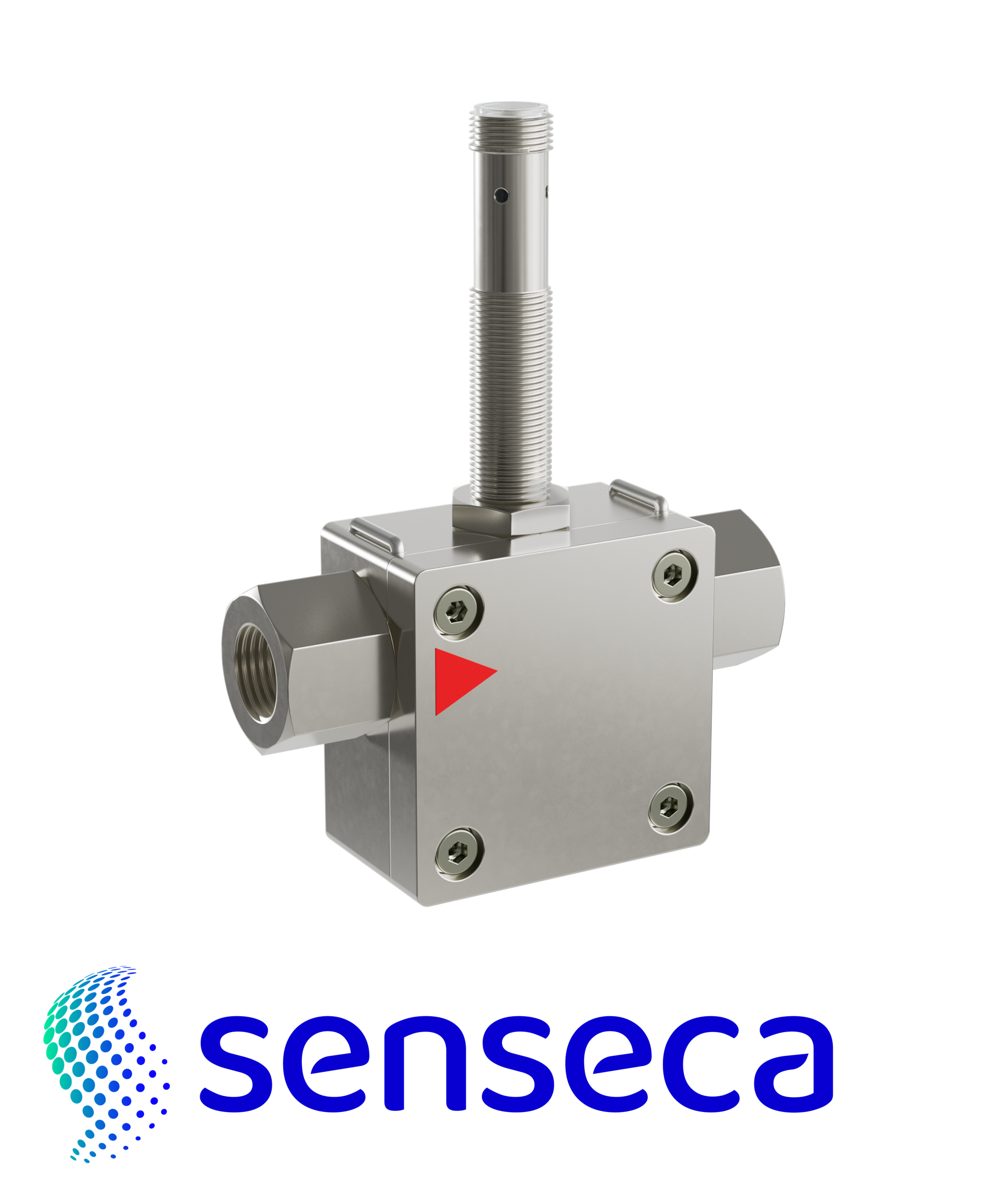

LABOPLUS-RRH Paddlewheel flow meter
- Consists of Rotor Vane which rotation speed is proportional to thevolume flow per unit time
- Rotation of the rotor is detected by a Hall Sensor
- Metering substances: water, oil (viscosity up to 10 mm2/s)
- Adjustable range from 0.1 to 100 l/min
- G3/8 to G1 (DN 10 to DN 25) female thread (Other thread type available upon request)
- Max. PN 100 bar, Max. Temperature 100°C
- Protection: IP 67
- Electronics support IO-Link V1.1.3, COM2 communication, block parameterization and data storage
- Can be configured for current or voltage operation, including 4…20 mA, 0…20 mA, 0…10 V and further voltage ranges
- The push-pull transistor output can be configured as a limit switch, frequency output, pulse output or preset counter signal
- The device connects via a 4-pin M12x1 circular connector and operates with an 18…30 V DC supply

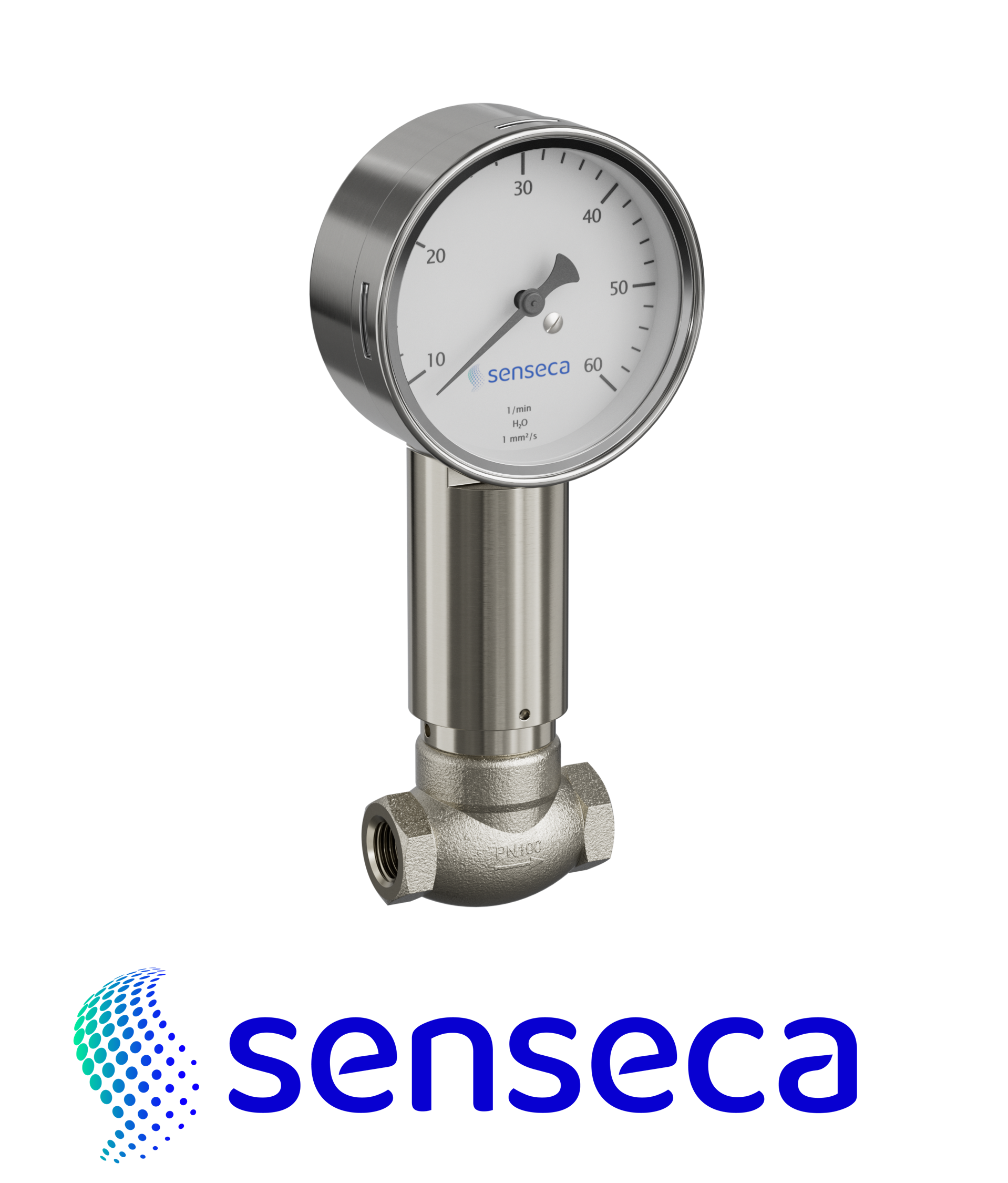

TZ1-GR Paddle Flowmeter
- Flow meter for water monitoring from 2 to 600 l/min H2O across DN 8 to DN 80 nominal sizes
- With large analog indication, optional microswitch
- G 1/4 to G 3 female threads and ingress protection (IP65)
- Piston and magnetic coupling design works with a tolerance of ±3 % of full scale
- Monitor and display
- Simple adjustment by means of drag indicator
- Insensitive to dirt
- Short installation length
- The standard medium is water
- Oil versions are available on request, with medium temperature from -20 to +90 °C

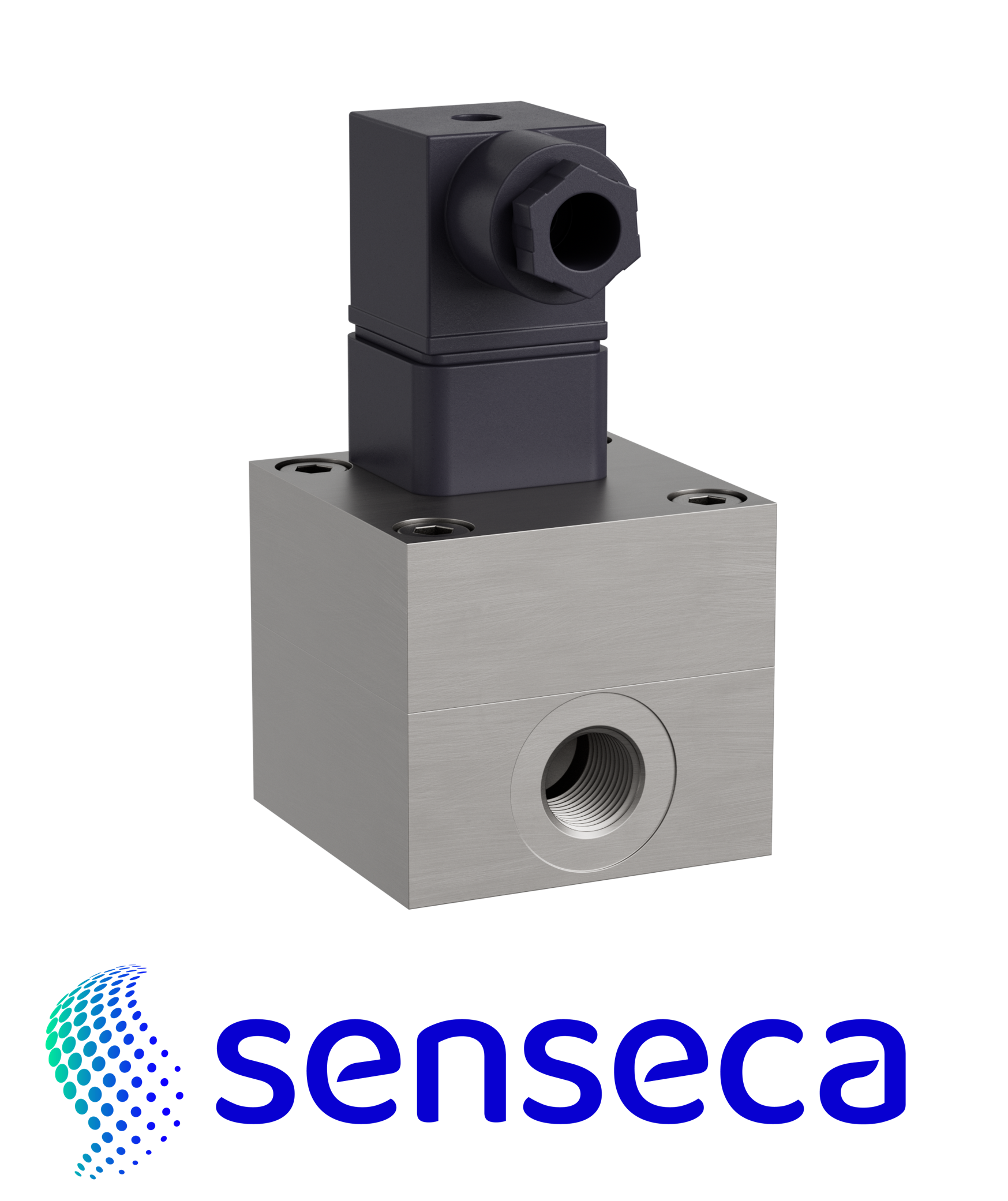

VHZ Flow Transmitter
- Flow transmitter for viscous liquids and oils
- Viscosity compensated by volumetric operation
- Light and compact design
- Metering substances: water, oil noted
- Max. PN 200 bar, Max. Temperature 120°C
- G1/4 to G1 female thread brass / stainlesssteel
- Nominal Diameter from DN 8 to DN 25
- Metering ranges from 0.02 to 150 l/min H2O
- Protection: IP 65
- Select push-pull, A/B direction detection or 2-wire pulse output
- Variants are available with aluminum or stainless steel housing
- Media-contacting materials include stainless steel, FKM and Iglidur X depending on version

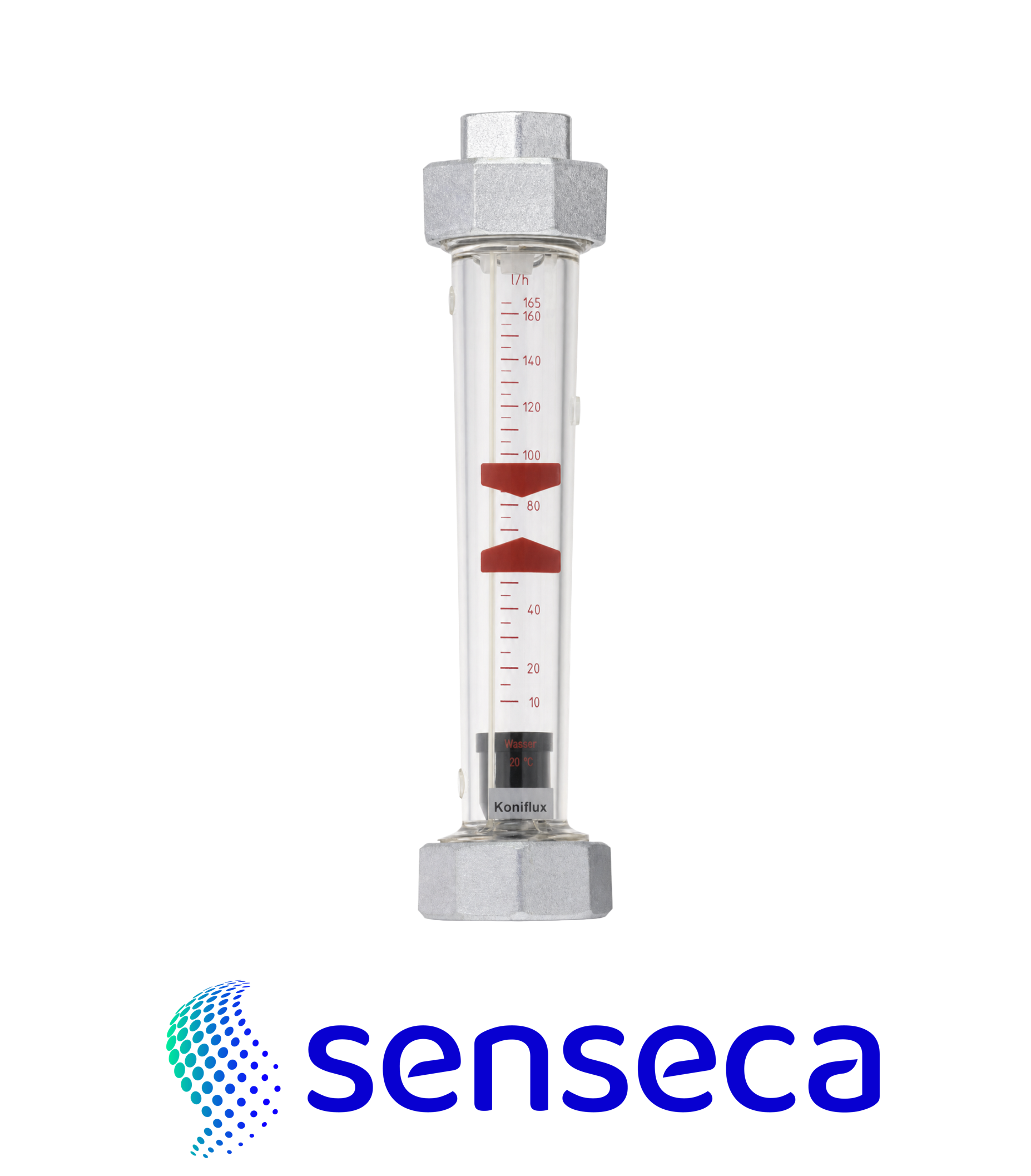

GK Variable Area Flowmeter
- Flowmeter for water and air with optional switch output
- Flow meter operates invariable area principal with a moving flow-dependent cylindrical float in a conical plastic tube
- Covering water from 2…650 l/min and air from 0.02…37.5 Nm³/h, with DN 10…25 sizes
- Large transparent scale shows flow directly for quick checks on water or air lines
- Actual flow rate indicatormin/max
- Metering substances: water,gas/air
- Max. PN 15 bar, Max.temperature 60 ̊C
- Female thread, cast iron
- Select cast iron Rp 3/8″…Rp 1″ or PVC solvent socket Ø16…32
- Optional reed switch available
- Protection: IP 65

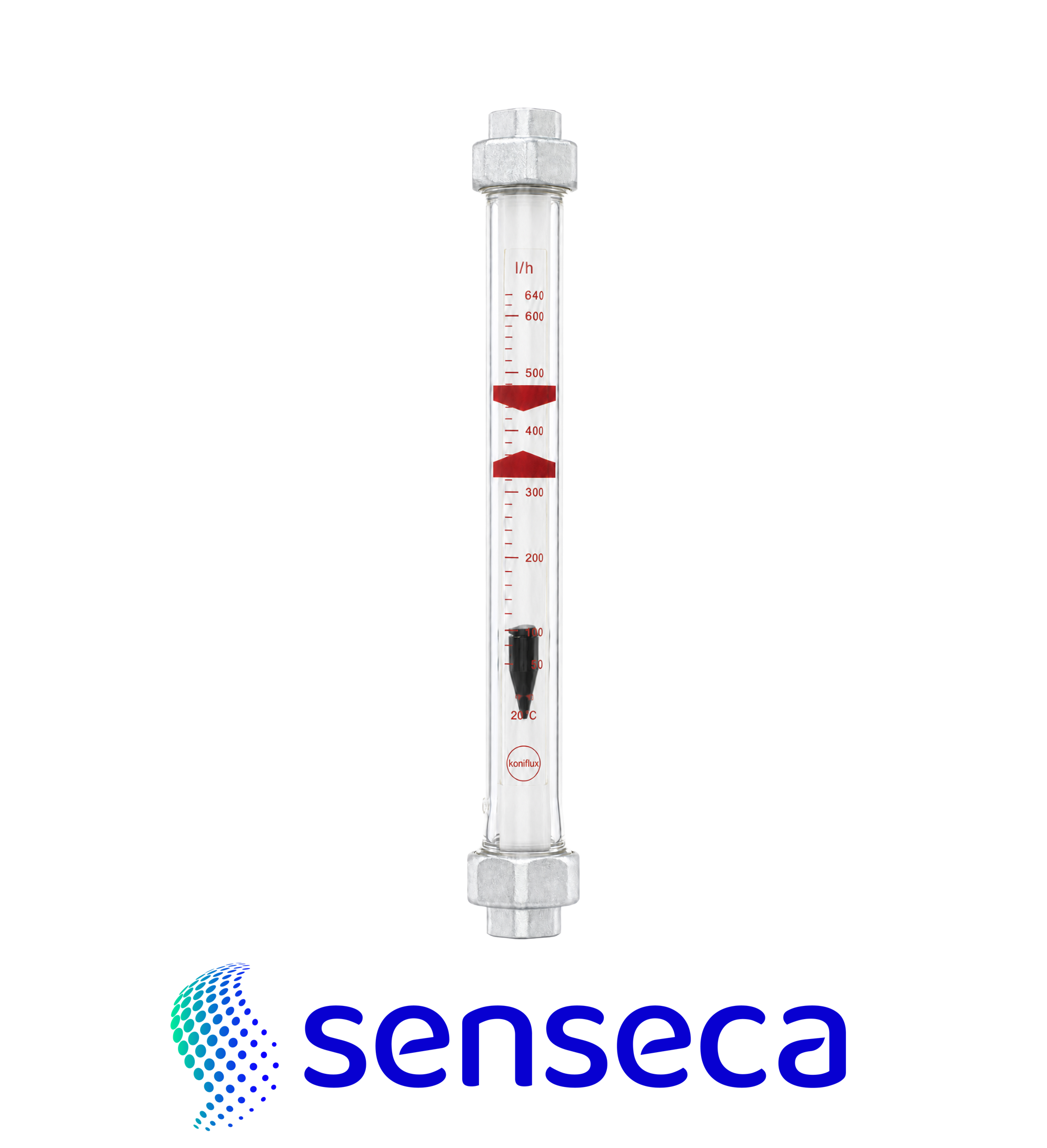

GKL Variable area flow meter
- Variable area flow meter for water and gas lines
- Flowmeter operates invariable area principal with flow dependent cylindrical float in conical plastic tube
- DN 25…50 sizes, water ranges from 20 – 250 l/h to 1 – 10 m³/h, air ranges from 0.4 – 4 to 20 – 250 Nm³/h
- The transparent tapered tube has a large scale and setpoint indicator for quick flow checks
- Extended scale length
- Actual flow rate indicatormin/max
- Metering substances: water, gas/air
- Max. PN 15 bar, Max.Temperature 60 ̊C
- Female thread, cast iron
- Optional reed switch available
- Protection: IP 65
