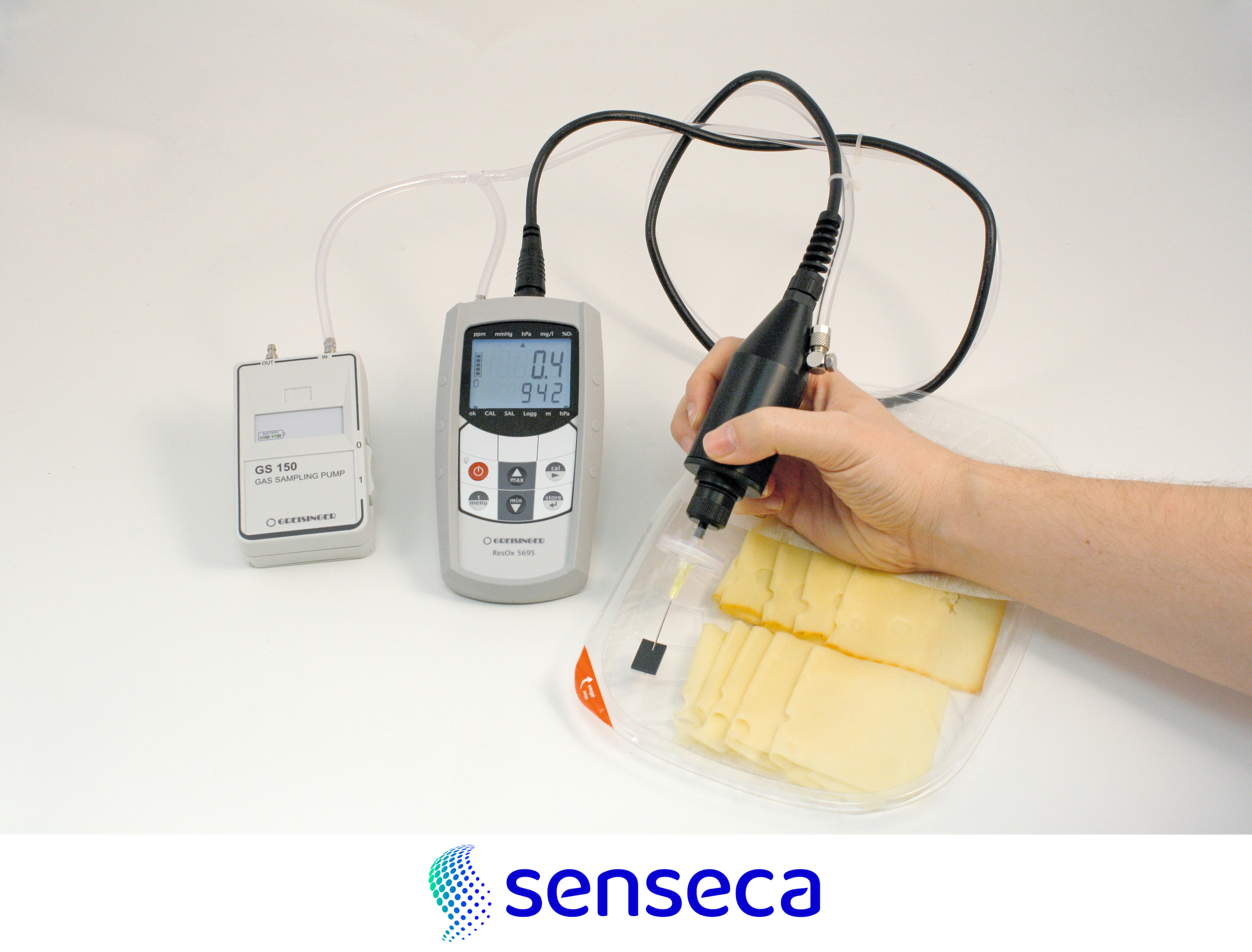

ResOx 5695 Residual oxygen measuring system

• With data logger and interface
• Pressure-compensated measurement – particularly important for rigid packages!
• Intelligent complete measuring system in a practical carry case
• Measuring channels: O 2 , T, air pressure
• Measurement ranges: O 2 : 0.0 … 100.0% O 2 or displayed in hPa O 2 / mmHg O 2, Temperature: 0.0 … 50.0 ° C,Air pressure: 300 … 5000 hPa (sensor: 500 … 2000 hPa)
• Additional functions: Min / max function – for comfortable measurement of the limit value; Pressure compensation in the gas path – negative pressure in the package / on the sensor is compensated for the
• Scope of supply: Ready-to-operate system: Display GMH 5695, incl. Battery, sensor housing with pressure connection incl. Sensor, gas pump GS 150 incl. Battery, connection lines, hoses / T-piece, 2 GDZ 29 filters, 2 GOG-N puncture needles Ø 0.9 mm, 1 GOG-B: 45 pcs. adhesive seal, carry case GKK 3700
• Application: Quality control for MAP food packaging and comparable applications
• quick measurement: Apply adhesive seal, Puncture with needle,Switch on the pump, Read the minimum value after approx. 20 s
