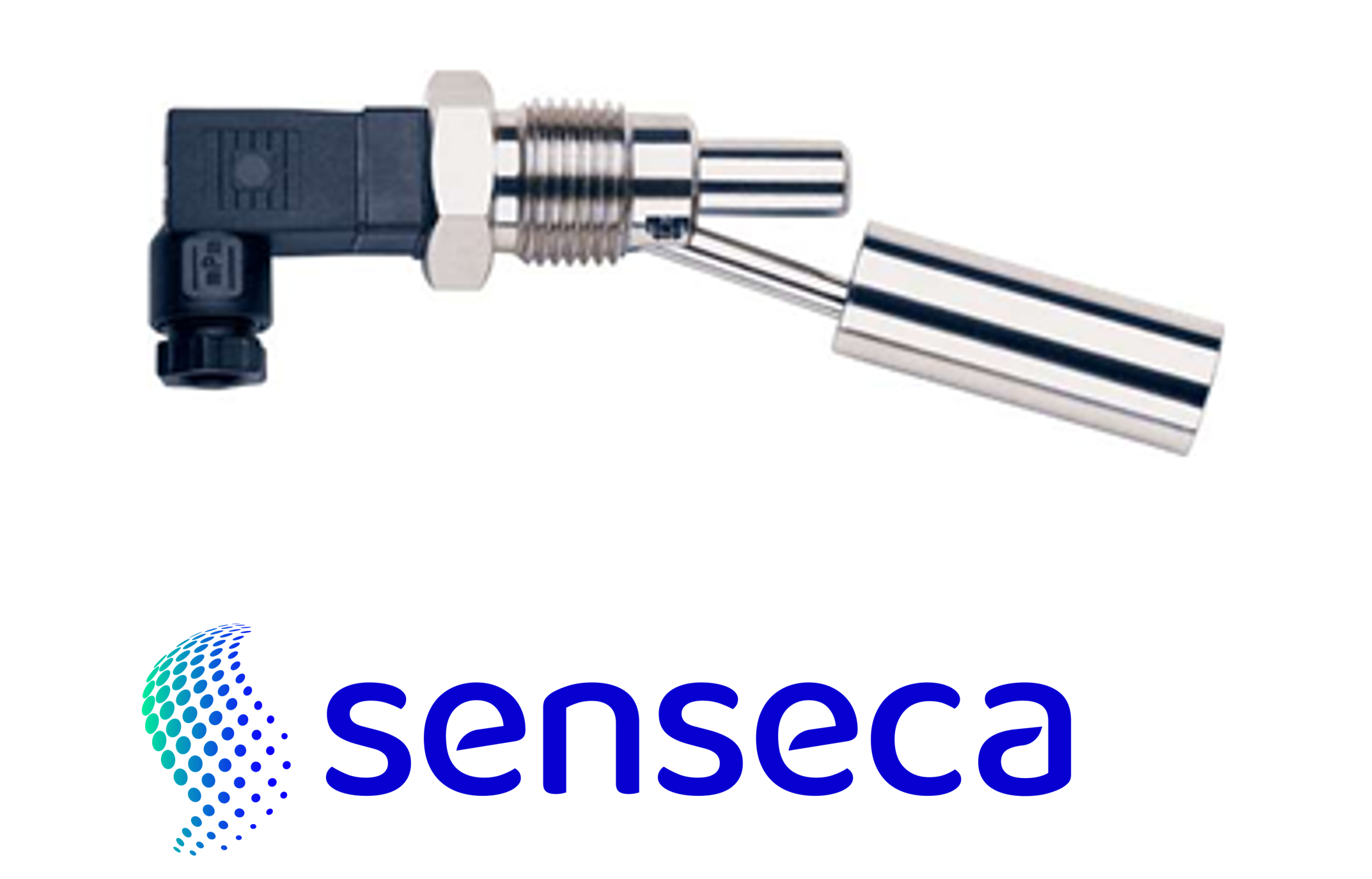

RW-015HKS Level Switch
- Float functional principle
- Reed switch contact, DIN connector
- Screw-in thread connection type
- Stainless steel material
- Wall mounting
- Reliable and high temperature rating
- Measuring materials: water, oil
- Max. PN 5 bar, max. temperature 120°C
- 1/8BSPP – 1/2 BSPT male thread
- Liquid density 0.75 g/cm³ / 0.70 g/cm³
- Protection: IP 65

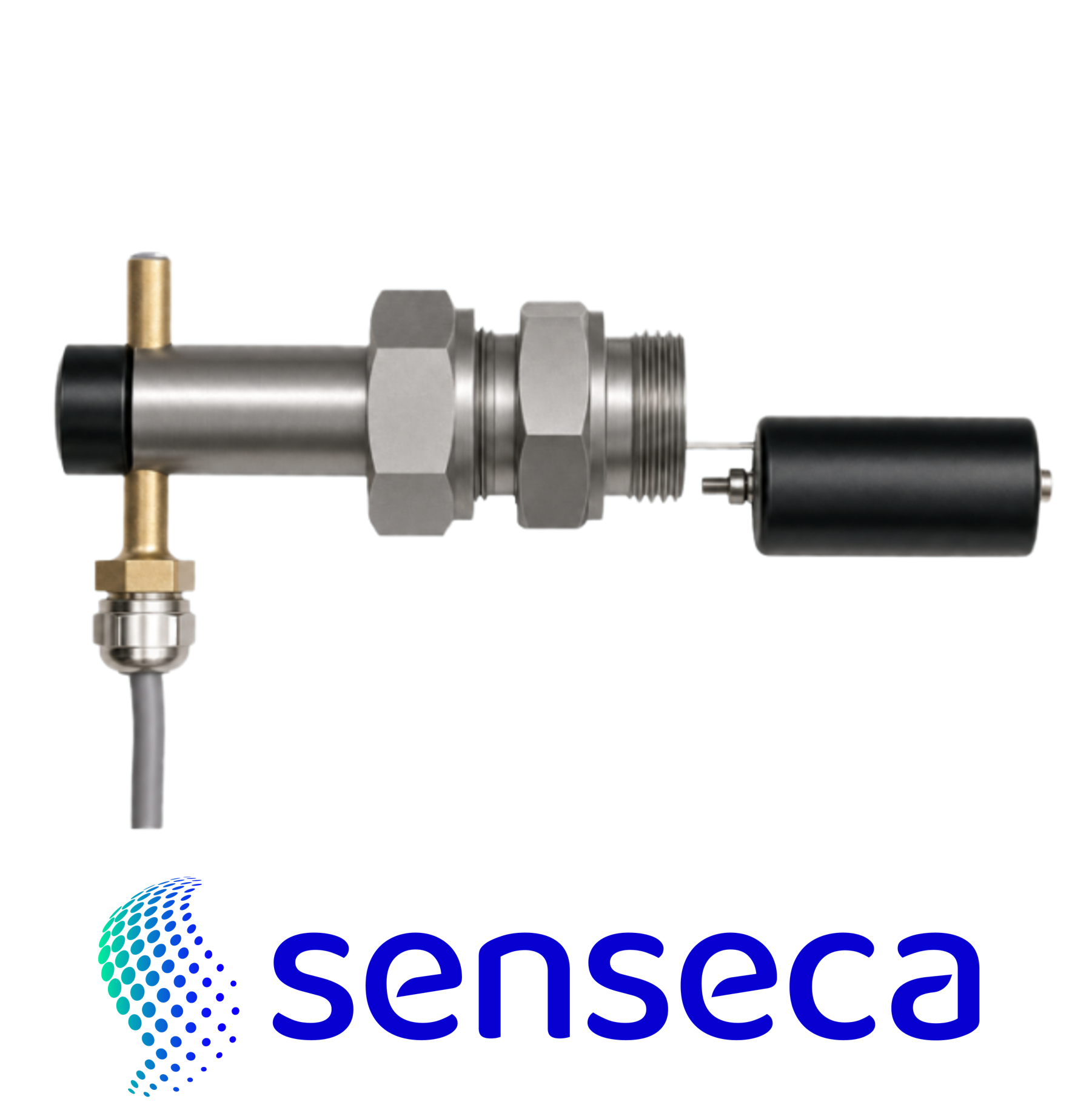

NW1 Level Switch
- Mechanical level monitor for fluid media
- G ¾ A and G 1 A male threads support horizontal installation
- Choose normally open or normally closed wiring to match the control task
- Brass and stainless steel designs
- The standard version uses a Spansil float
- Stainless steel and PVDF float options are also available
- The reed contact is rated for max. 230 V AC, max. 1 A switching current and max. 50 VA switching capacity
- The source lists water and oils as media. The device is not suitable for use in media with ferritic particles
- IP65 protection and a 1.5 m cable connection suit industrial fluid media
- An option is available for switching unit ATEX A-U1-2 with brass or stainless steel connection material and stainless steel float

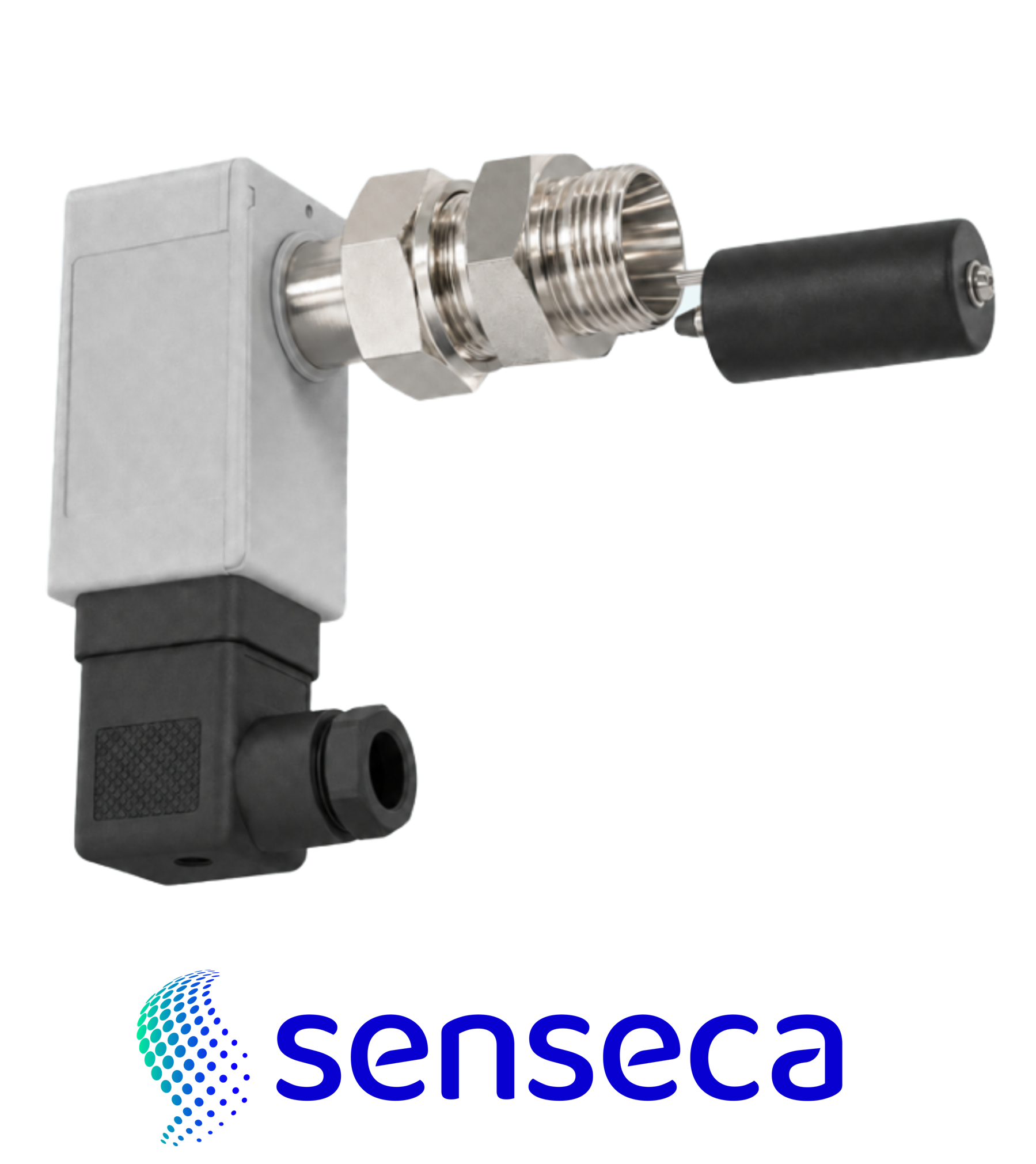

MW3 Level Switch
- Mechanical level monitor for fluid media with contact-free triggering of a micro switch
- Float functional principle
- Microswitch contact, plug connector
- Screw-in thread connection type
- Brass/stainless steel materials
- Process connection: male thread G ¾ A; G 1 A
- Medium temperature: -20..+110 °C
- Media: water, oils
- Ingress protection: IP 65
- Electrical connection: plug DIN 43650-A / ISO 4400

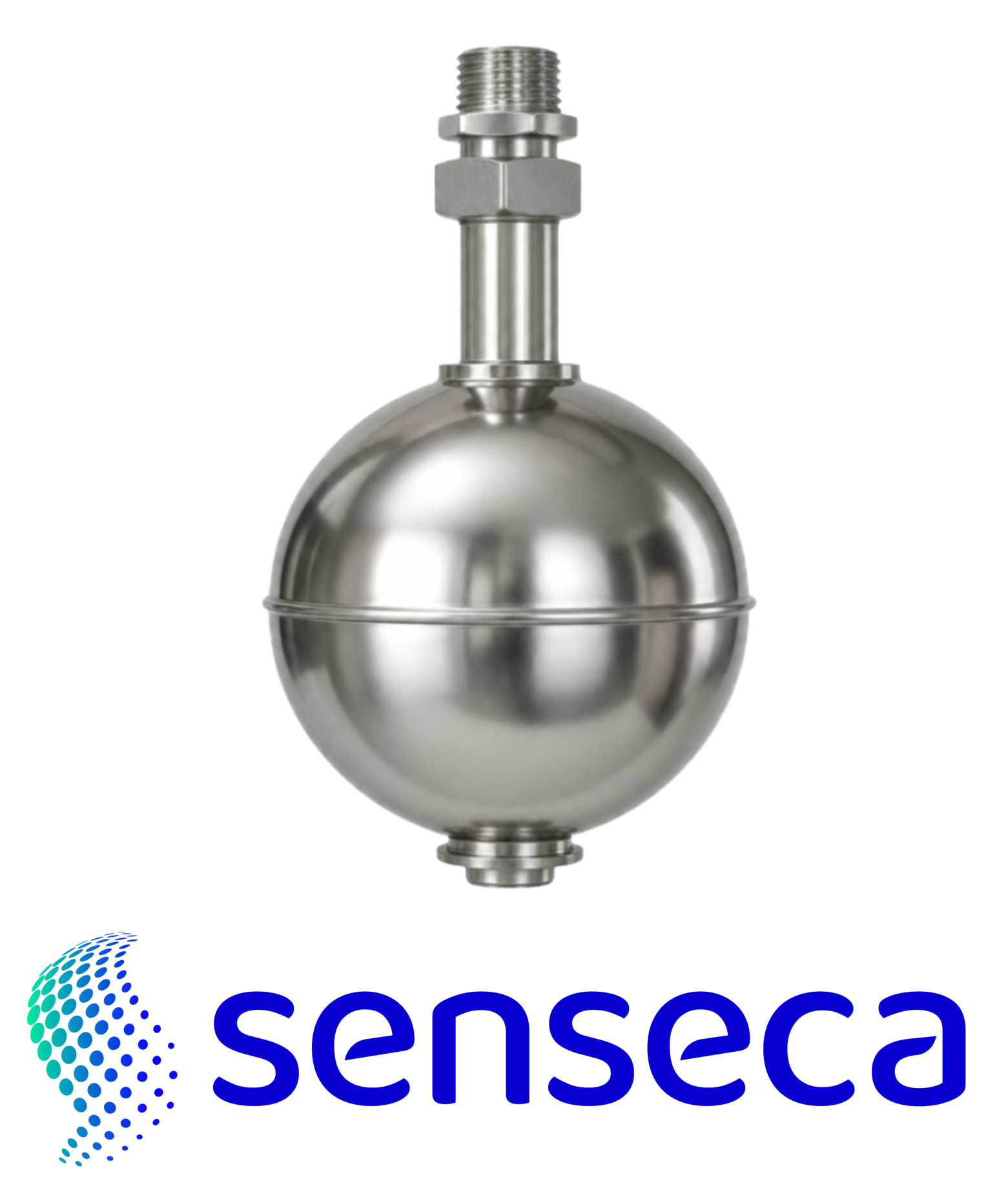

SIMPLE S1.S100 Level Switch
- Level switch for liquid level control with magnetic float operation
- Standard units are available with connection cable lengths of 1.5 m and 3.0 m
- Other cable lengths are available on request
- Contact options include SPST and SPDT types, with contact classes listed in the source tables for the different variants
- The nomenclature covers male thread options including G (Gas) parallel UNI 228/1
- Working pressure up to 15 bar, depending on the used float
- Operating ambient temperature -30/+55°C RH 90%.
- Executions for temperature up to 180 ° C, on request.
- Minimum degree of protection IP65
- ATEX construction 1G Exia IIC T6

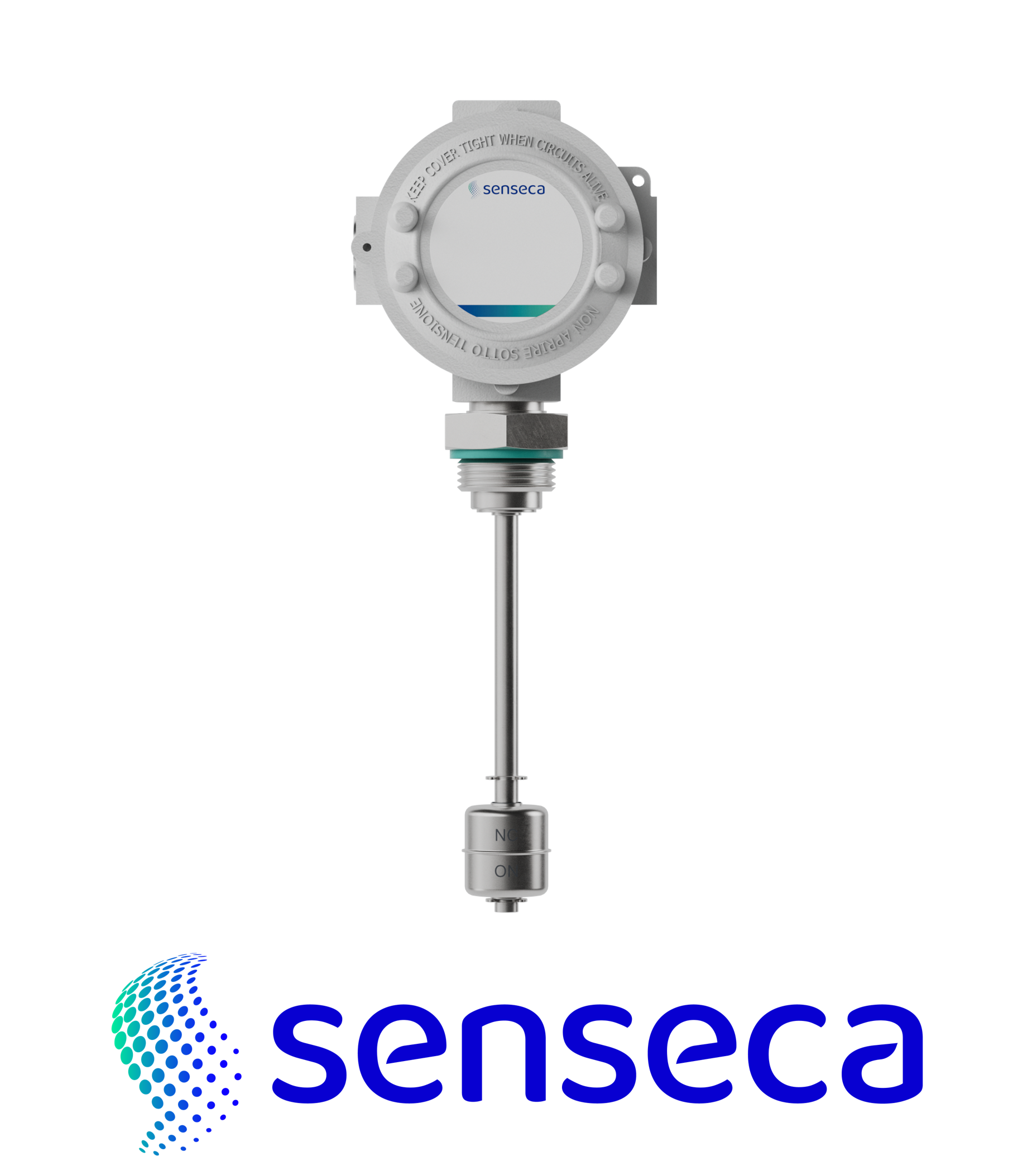

MULTIPOINT S – ATEX E Level switch for ATEX hazardous-area tank control
- Stainless steel – AISI 316
- Up to 6 switch points
- Up to 6 m length
- Maximum working pressure 50 bar depending on used float
- Standard working temperature up to 100°C
- Executions up to 160°C on request
- Operating ambient temperature
T6 -40/+40°C T5 -40/+60°C - Minimum degree of protection IP67
- Built-in temperature sensors, on request
PT – PTC – NTC – Thermostat (Thermoprotector) - explosion-proof certified CESI 03 ATEX 272 Ext.2 II 1/2G Exdb IIC T5/T6 Ga/Gb

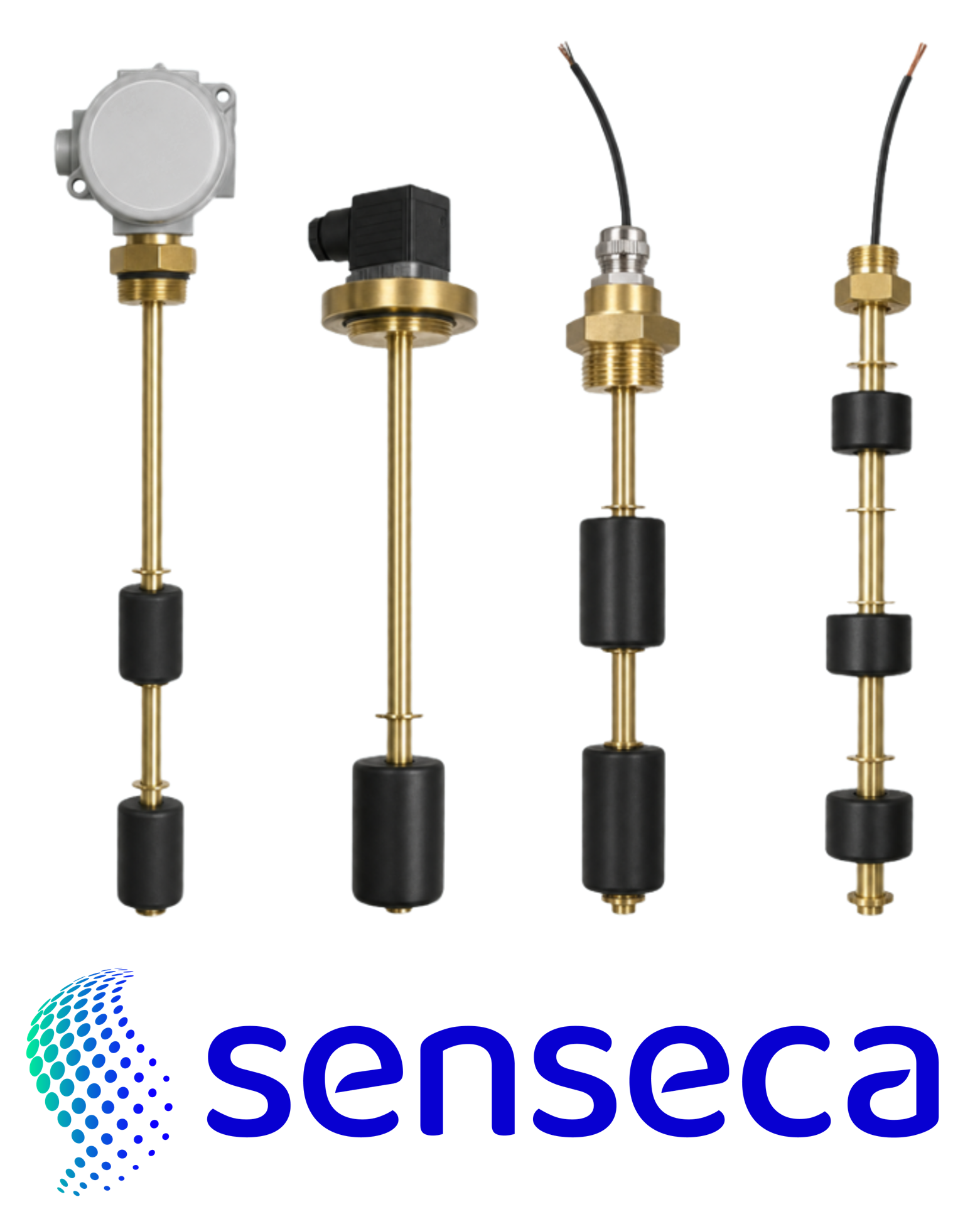

MULTIPOINT O Level switch for multi-point liquid monitoring
- Brass – Spansil
- Up to 6 switch points.
- Up to 6 m length.
- Maximum working pressure 20 bar.
- Operating ambient temperature -30/+55°C UR 90%.
- Standard working temperature up to 105°C.
Executions up to 120°C on request. - Minimum degree of protection IP65.
- Built-in temperature sensors, on request.
PT – PTC – NTC – Thermostat. - ATEX constructions

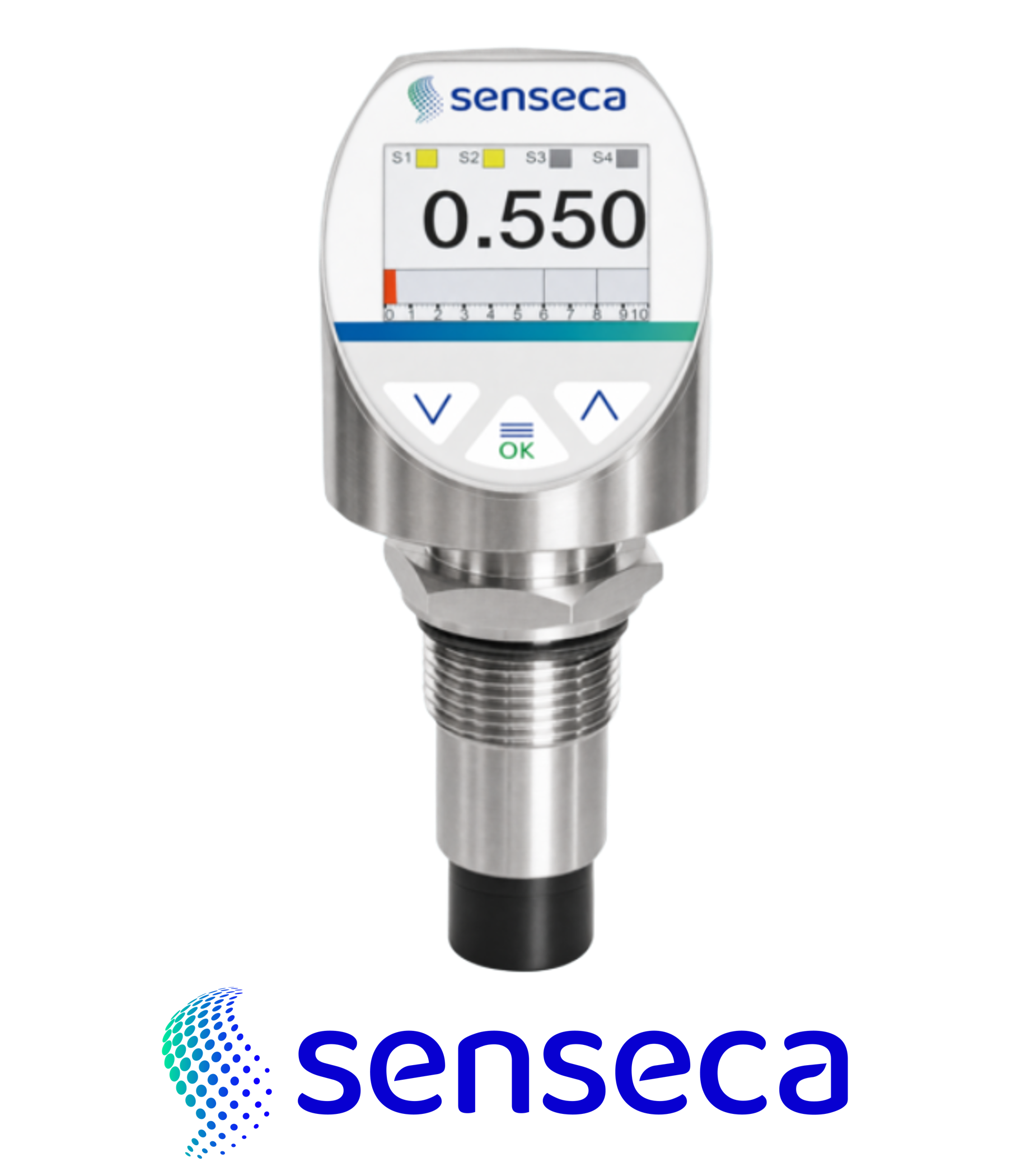

Sonicont USN Ultrasonic level transmitter
- Measuring ranges up to 8m in liquids and bulk materials
- Wide process temperature range –40°C to +85°C
- High protection class IP65 / IP67
- Wide environmental temperature range –20°C to +70°C
- Integrated evaluation electronic
- Graphic display, keyboard
- 4x PNP switch output
- 1x current output 0/4…20mA – voltage output 0…10V
- Measure data memory for more than 500.000 measuring values
- Battery powered data logger function
- Bluetooth-Interface
- Connector plug M12

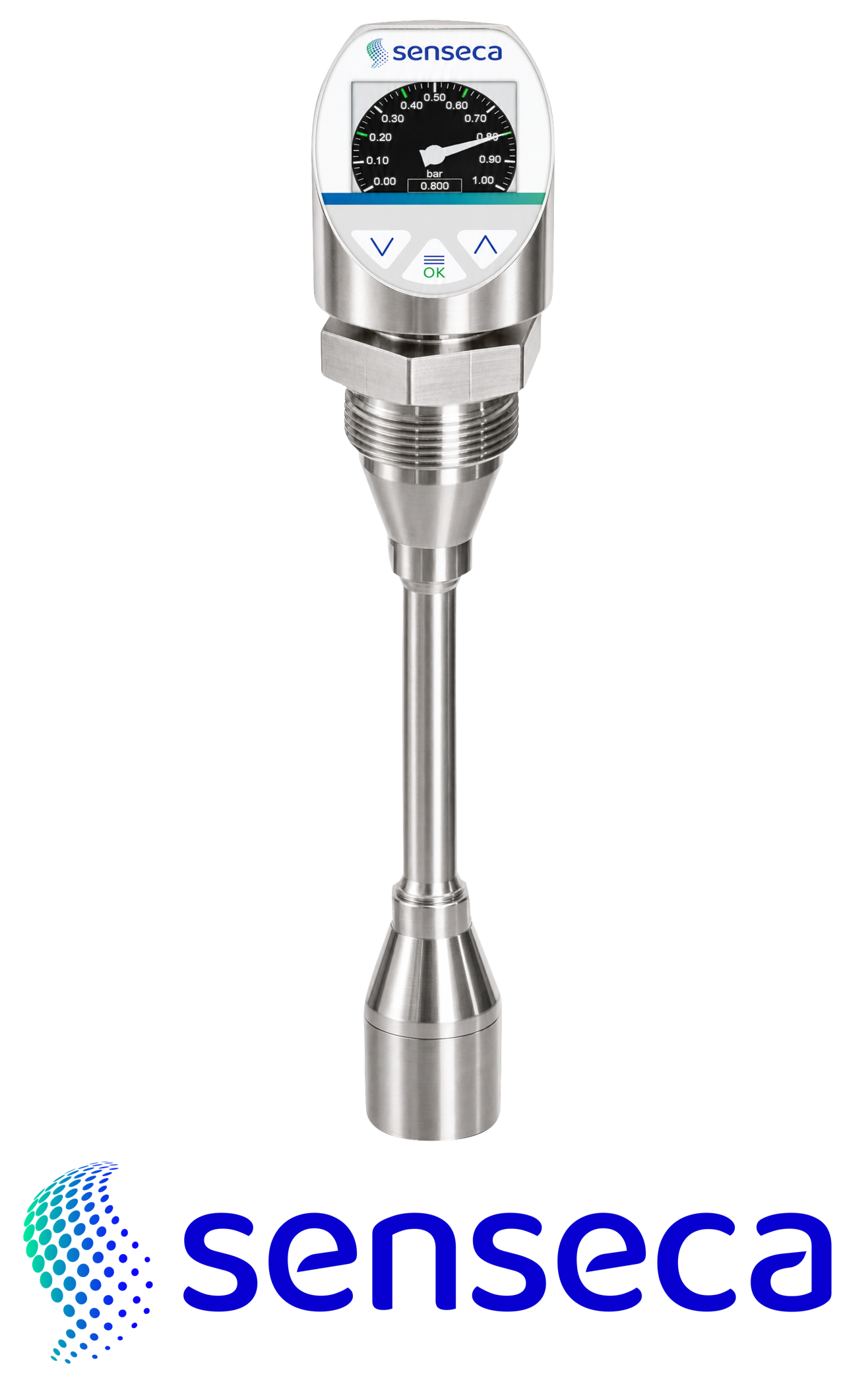

Hydrocont HN4 Hydrostatic level transmitter
- Finely graded measuring ranges from 50 mbar up to 20 bar
- Wide process temperature range –40°C to +125°C
- Construction types extension cable and extension tube
- Wide variety of process connections
- High protection class IP65 / IP67
- Wide environmental temperature range –20°C to +70°C
- Graphic display, keyboard
- 4x PNP switch output
- 1x current output 0/4…20mA – voltage output 0…10V
- Measure data memory for more than 500.000 measuring values
- Battery powered data logger function
- Connector plug M12
